The Complete Guide to Waterproof LED Drivers: Everything You Need to Know in 2025

When it comes to outdoor lighting installations, architectural illumination, or any LED application exposed to moisture, choosing the right waterproof LED driver is crucial for longevity and performance. At Sarlux Electronics, we understand that selecting the proper LED driver can mean the difference between a lighting system that lasts decades and one that fails within months.

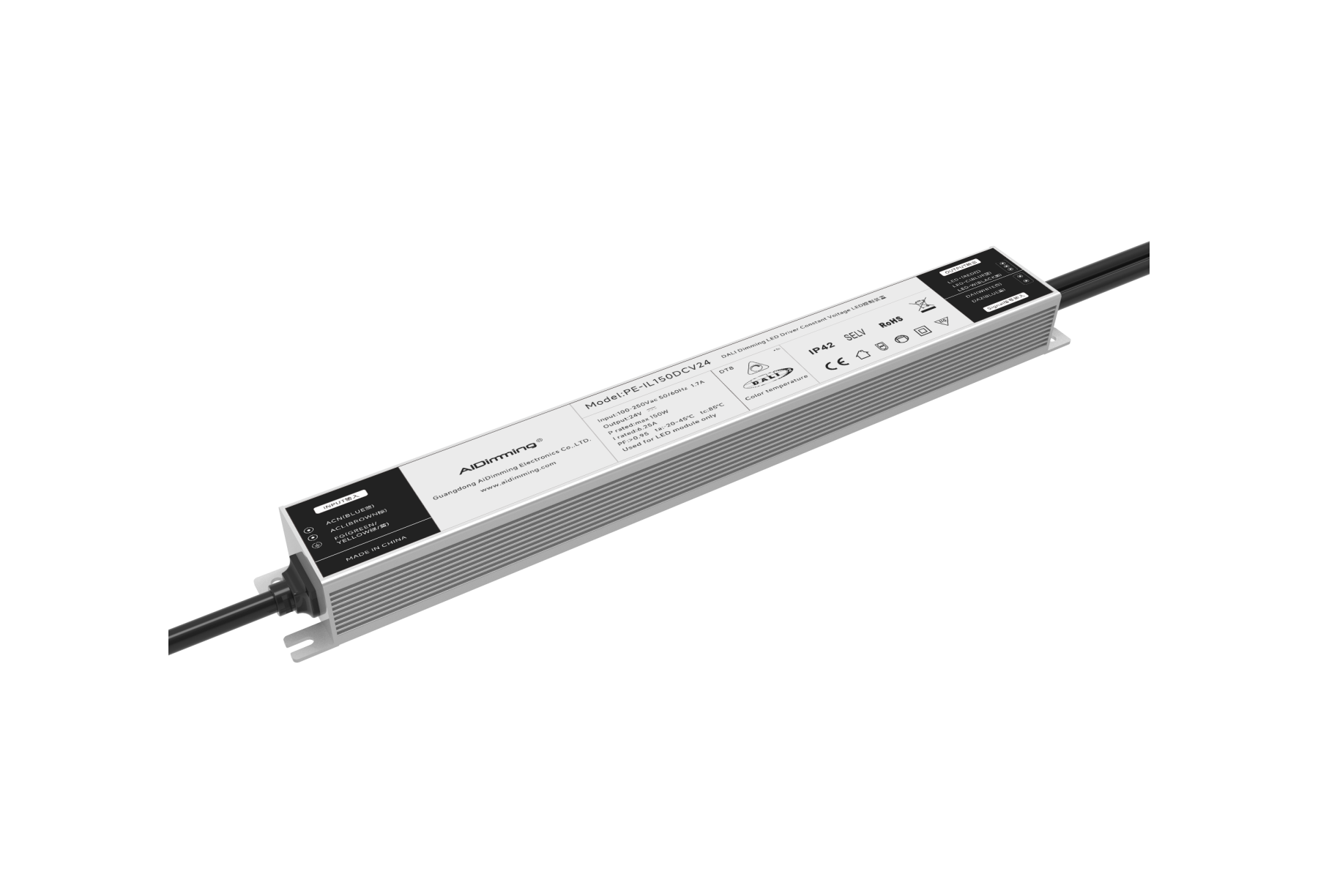

What is a Waterproof LED Driver?

A waterproof LED driver is a specialized power supply designed to convert AC voltage from your mains supply into the DC voltage required by LED lighting systems, while being protected against water ingress and environmental factors. These drivers are engineered with sealed enclosures, protective coatings, and robust components that can withstand moisture, humidity, rain, and even temporary submersion depending on their IP rating.

Unlike standard LED drivers, waterproof variants incorporate additional protective measures including potted circuits, sealed cable entries, and corrosion-resistant housings that make them suitable for harsh environments where conventional drivers would quickly fail.

Understanding IP Ratings: The Key to Waterproof Protection

The effectiveness of a waterproof LED driver is primarily measured by its Ingress Protection (IP) rating. This international standard defines the level of protection against solid objects and liquids.

Decoding IP Ratings

An IP rating consists of two digits. The first digit indicates protection against solid particles, while the second indicates liquid protection. For waterproof applications, focus on the second digit:

IP65: Protected against water jets from any direction. Suitable for most outdoor applications where direct water spray is possible but submersion is not expected. Perfect for garden lighting, building facades, and covered outdoor areas.

IP66: Protected against powerful water jets and heavy seas. Ideal for marine environments, wash-down areas, and locations exposed to severe weather conditions.

IP67: Protected against temporary immersion in water up to 1 meter depth for 30 minutes. Excellent for ground-level installations, fountain lighting, and areas prone to flooding.

IP68: Protected against continuous immersion beyond 1 meter. Essential for underwater lighting, pool installations, and permanently submerged applications.

For most outdoor LED lighting projects, an IP65 or IP67 rated driver from Sarlux Electronics will provide adequate protection while maintaining cost-effectiveness.

Types of Waterproof LED Drivers

Constant Current Waterproof Drivers

Constant current drivers maintain a fixed current output while voltage varies depending on the LED load. These are ideal for high-power LEDs and applications where precise brightness control is essential. They protect your LEDs from current fluctuations that could cause overheating or premature failure.

Sarlux Electronics offers constant current waterproof drivers ranging from 350mA to 3000mA, suitable for everything from small accent lighting to large-scale architectural installations. These drivers automatically adjust voltage within their operating range to maintain consistent current, ensuring uniform brightness across your LED array.

Constant Voltage Waterproof Drivers

Constant voltage drivers maintain a fixed output voltage, typically 12V or 24V, making them perfect for LED strips, modules, and parallel LED configurations. These drivers are simpler to install and more flexible for projects requiring multiple LED connections.

Our constant voltage waterproof LED drivers feature built-in overload protection, short circuit protection, and thermal management systems that prevent damage even in demanding conditions. They’re particularly popular for decorative lighting, signage, and applications where LED loads may be added or modified over time.

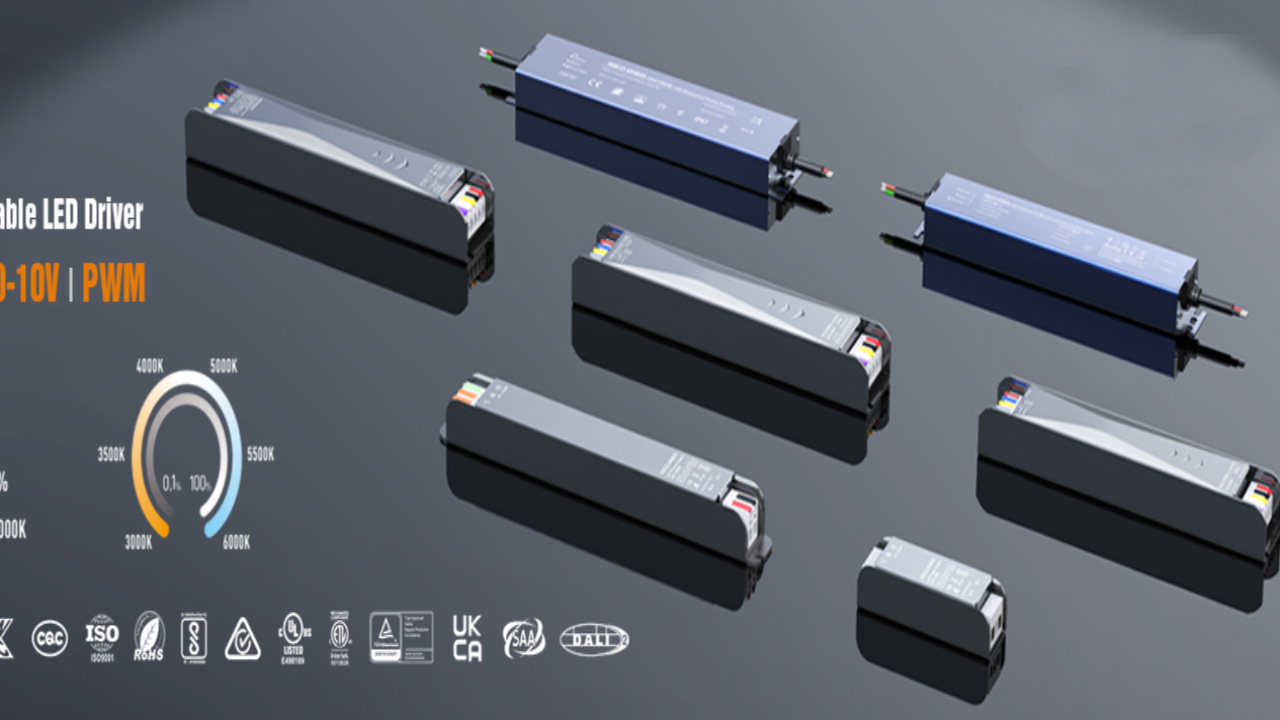

Dimmable Waterproof LED Drivers

Modern lighting design increasingly demands dimming capability for ambiance control and energy savings. Waterproof dimmable LED drivers support various dimming protocols including:

• 0-10V dimming: Industry standard, compatible with most commercial dimming systems
• PWM dimming: Pulse width modulation for flicker-free, smooth dimming performance
• TRIAC dimming: Compatible with traditional wall dimmers for residential applications
• DALI dimming: Digital addressable lighting interface for sophisticated control systems

When selecting a dimmable waterproof driver, ensure compatibility between your dimming system and the driver’s supported protocols to avoid performance issues.

Key Technical Specifications to Consider

Power Output and Wattage

Calculate your total LED load carefully before selecting a driver. As a general rule, choose a driver rated for at least 20% more wattage than your LED system requires. This headroom ensures efficient operation, reduces heat generation, and extends driver lifespan. Sarlux Electronics waterproof drivers range from 10W compact units for small installations to 320W high-power drivers for commercial projects.

Input Voltage Range

Consider the electrical infrastructure at your installation site. Most waterproof LED drivers accept universal input voltages from 100-277VAC, making them suitable for global applications. However, some specialized units may require specific input voltages, so verify compatibility before purchase.

Efficiency Rating

Driver efficiency directly impacts operating costs and heat generation. Modern waterproof LED drivers from Sarlux Electronics achieve efficiency ratings of 90-95%, meaning minimal energy is wasted as heat. Higher efficiency translates to lower electricity bills, reduced thermal stress on components, and improved system reliability.

Power Factor Correction (PFC)

Power factor measures how effectively a driver uses incoming electrical power. Drivers with active PFC maintain power factors above 0.95, reducing reactive power losses and complying with international energy standards. Most commercial and industrial applications require high PFC ratings to meet building codes and utility regulations.

Operating Temperature Range

Waterproof LED drivers must function reliably across extreme temperatures. Quality units operate from -40°C to +60°C or wider, with thermal protection that automatically reduces output or shuts down if temperatures exceed safe limits. For particularly hot or cold environments, consider drivers with extended temperature ratings or additional cooling provisions.

Applications of Waterproof LED Drivers

Outdoor Architectural Lighting

Waterproof LED drivers power facade lighting, building outlines, and landmark illumination where dramatic visual effects combine with exposure to weather. These installations demand reliable drivers that maintain consistent performance through years of temperature cycling, moisture exposure, and environmental stress.

Landscape and Garden Lighting

Path lights, uplights, garden features, and decorative landscape elements all require waterproof drivers. Ground-level installations particularly benefit from IP67 or IP68 rated drivers that can withstand occasional flooding or sprinkler contact. Sarlux Electronics offers compact waterproof drivers specifically designed for distributed landscape installations.

Street and Area Lighting

Municipal lighting, parking lot illumination, and security lighting represent demanding applications where failure means safety risks and expensive maintenance. Waterproof LED drivers for these applications feature extended warranties, surge protection, and robust construction that ensures years of maintenance-free operation.

Marine and Dock Lighting

Saltwater environments present extreme challenges for electronic equipment. Marine-grade waterproof LED drivers incorporate corrosion-resistant housings, sealed connectors, and conformal coatings that protect against salt spray and humidity. These specialized units meet maritime certification requirements and provide reliable illumination for docks, boats, and waterfront facilities.

Pool and Fountain Lighting

Submersible and water-feature lighting requires IP68 rated drivers specifically designed for continuous wet environments. These drivers often include additional safety features like reinforced insulation and leakage current protection to meet stringent electrical codes for underwater installations.

Industrial and Manufacturing

Wash-down areas, food processing facilities, and industrial environments where cleaning and moisture exposure are routine need waterproof LED drivers that withstand chemical exposure and high-pressure cleaning. Drivers for these applications often feature stainless steel housings and sealed cable entries that prevent ingress during cleaning operations.

Installation Best Practices for Waterproof LED Drivers

Location Selection

Even waterproof drivers perform best when protected from direct water exposure. Mount drivers under eaves, in protective enclosures, or in orientations that prevent water pooling on the unit. Ensure adequate ventilation around the driver to facilitate heat dissipation, as sealed waterproof housings trap heat more effectively than open designs.

Cable Entry Management

Water typically enters failed “waterproof” installations through cable entry points rather than through the housing itself. Always use the provided cable glands or waterproof connectors, ensuring proper tightening and seal compression. Route cables downward from entry points to prevent water from following cables into the driver enclosure.

Mounting Orientation

Mount waterproof LED drivers with cable entries facing downward when possible. This simple practice prevents water from pooling near connection points. Secure mounting prevents vibration damage and ensures gaskets maintain proper compression over time.

Electrical Connections

Use waterproof wire connectors or heat-shrink tubing with sealant for all field connections. Standard wire nuts and electrical tape are insufficient for outdoor applications. Consider using waterproof junction boxes for connection points between drivers and LED fixtures, creating multiple layers of water protection.

Grounding and Surge Protection

Proper grounding is essential for safety and lightning protection. Use appropriate grounding conductors sized for the installation, and consider adding surge protection devices for exposed outdoor installations in areas with frequent lightning activity. Sarlux Electronics drivers include internal surge protection, but additional external protection provides extra security for valuable installations.

Common Problems and Troubleshooting

Premature Driver Failure

Waterproof LED driver failures often result from thermal issues rather than water ingress. Ensure drivers operate within specified temperature ranges and have adequate ventilation. Oversized drivers running at partial capacity operate cooler and last longer than fully-loaded units.

Flickering or Unstable Output

Flickering may indicate incompatibility between dimming systems and drivers, loose connections allowing moisture ingress, or drivers operating beyond their capacity. Verify all connections are secure and waterproofed, check load calculations, and confirm dimming compatibility when applicable.

Reduced Brightness Over Time

LED systems losing brightness may indicate driver degradation, particularly if operating in high-temperature environments. Waterproof drivers in direct sunlight or poorly ventilated enclosures experience accelerated aging. Providing shade or improved ventilation often resolves chronic overheating.

Complete System Failure

Check input power first using a multimeter. Verify that circuit breakers haven’t tripped and input voltage matches driver specifications. Inspect for visible damage, water ingress at cable entries, or signs of overheating like discolored housings or melted components.

Maintenance and Longevity

Regular Inspection Schedule

Inspect waterproof LED driver installations annually, checking for:

• Corrosion on housings or mounting hardware
• Damaged or degraded cable insulation
• Loose mounting hardware allowing vibration
• Debris accumulation blocking ventilation
• Proper operation of connected LED fixtures

Cleaning and Care

Clean waterproof driver housings with mild soap and water, avoiding harsh chemicals that might degrade seals or coatings. Ensure cable glands remain properly tightened and replace any damaged seals or gaskets immediately.

Expected Lifespan

Quality waterproof LED drivers from Sarlux Electronics typically provide 50,000+ hours of operation when properly installed and maintained. This translates to 15-20 years in typical outdoor lighting applications. Drivers operating in extreme conditions or at maximum capacity may have shorter lifespans, while those operating with adequate headroom and cooling often exceed rated lifespans.

Energy Efficiency and Cost Savings

Operational Savings

High-efficiency waterproof LED drivers reduce energy consumption compared to older lighting technologies. A typical 100W LED system with a 92% efficient driver consumes approximately 109W total, compared to 250W+ for equivalent HID lighting. Over a 50,000-hour lifespan, this efficiency difference saves thousands of dollars in electricity costs.

Reduced Maintenance Costs

Long-lived waterproof LED drivers dramatically reduce maintenance expenses. Traditional outdoor lighting systems require regular ballast or transformer replacements, often in difficult-to-access locations. Modern LED drivers provide maintenance-free operation for years, eliminating labor costs and replacement parts expenses.

Environmental Benefits

Efficient LED drivers contribute to reduced carbon emissions and environmental impact. By converting 90%+ of input power into usable LED power, minimal energy is wasted as heat. This efficiency, combined with LED technology’s inherent efficiency, creates lighting systems with minimal environmental footprints.

Selecting the Right Waterproof LED Driver from Sarlux Electronics

Application Assessment

Begin by thoroughly evaluating your application requirements:

• Environmental conditions and required IP rating
• Total LED load and power requirements
• Input voltage availability
• Dimming requirements and control systems
• Physical space constraints for driver mounting
• Certification requirements for your region

Quality Indicators

Premium waterproof LED drivers incorporate:

• Aluminum or stainless steel housings with excellent heat dissipation
• Multiple layers of water protection including potted circuits
• Comprehensive protection features including over-current, over-voltage, and thermal protection
• Industry certifications including UL, CE, RoHS, and IP ratings
• Manufacturer warranties of 3-5 years or longer

Technical Support

Partner with suppliers who provide technical support throughout your project. Sarlux Electronics offers pre-sale consultation to ensure proper driver selection, installation support to prevent common mistakes, and post-installation service to address any performance concerns.

Future Trends in Waterproof LED Driver Technology

Smart Driver Integration

Next-generation waterproof LED drivers increasingly incorporate wireless control, monitoring capabilities, and integration with building management systems. These smart drivers enable remote diagnostics, energy monitoring, and automated maintenance scheduling, reducing operating costs while improving reliability.

Improved Efficiency Standards

Ongoing improvements in power conversion technology continue pushing efficiency ratings higher. Future waterproof LED drivers will achieve 95%+ efficiency as standard, with some specialized designs approaching 98%, further reducing operational costs and environmental impact.

Compact Designs

Advances in component miniaturization and thermal management enable increasingly compact waterproof LED drivers without sacrificing performance or reliability. Smaller drivers simplify installation, reduce material costs, and enable new applications where space constraints previously prevented LED adoption.

Conclusion

Selecting the right waterproof LED driver is essential for creating reliable, long-lasting outdoor and moisture-exposed LED lighting installations. By understanding IP ratings, technical specifications, and application requirements, you can choose drivers that provide years of maintenance-free operation while delivering consistent, high-quality illumination.

Sarlux Electronics offers comprehensive ranges of waterproof LED drivers engineered for demanding applications worldwide. Our commitment to quality, performance, and customer support ensures your lighting projects succeed from design through decades of operation.

Whether you’re illuminating architectural landmarks, creating stunning landscape effects, or providing essential outdoor lighting, investing in quality waterproof LED drivers from Sarlux Electronics delivers the reliability and performance your projects demand.

For technical specifications, product selection assistance, or project consultation, contact our experienced team to discuss your waterproof LED driver requirements. We’re committed to helping you achieve outstanding results in even the most challenging environments.

About Sarlux Electronics: Leading manufacturer of professional LED drivers and power supplies for architectural, commercial, and industrial lighting applications worldwide. Committed to innovation, quality, and customer success in every project.
