Description

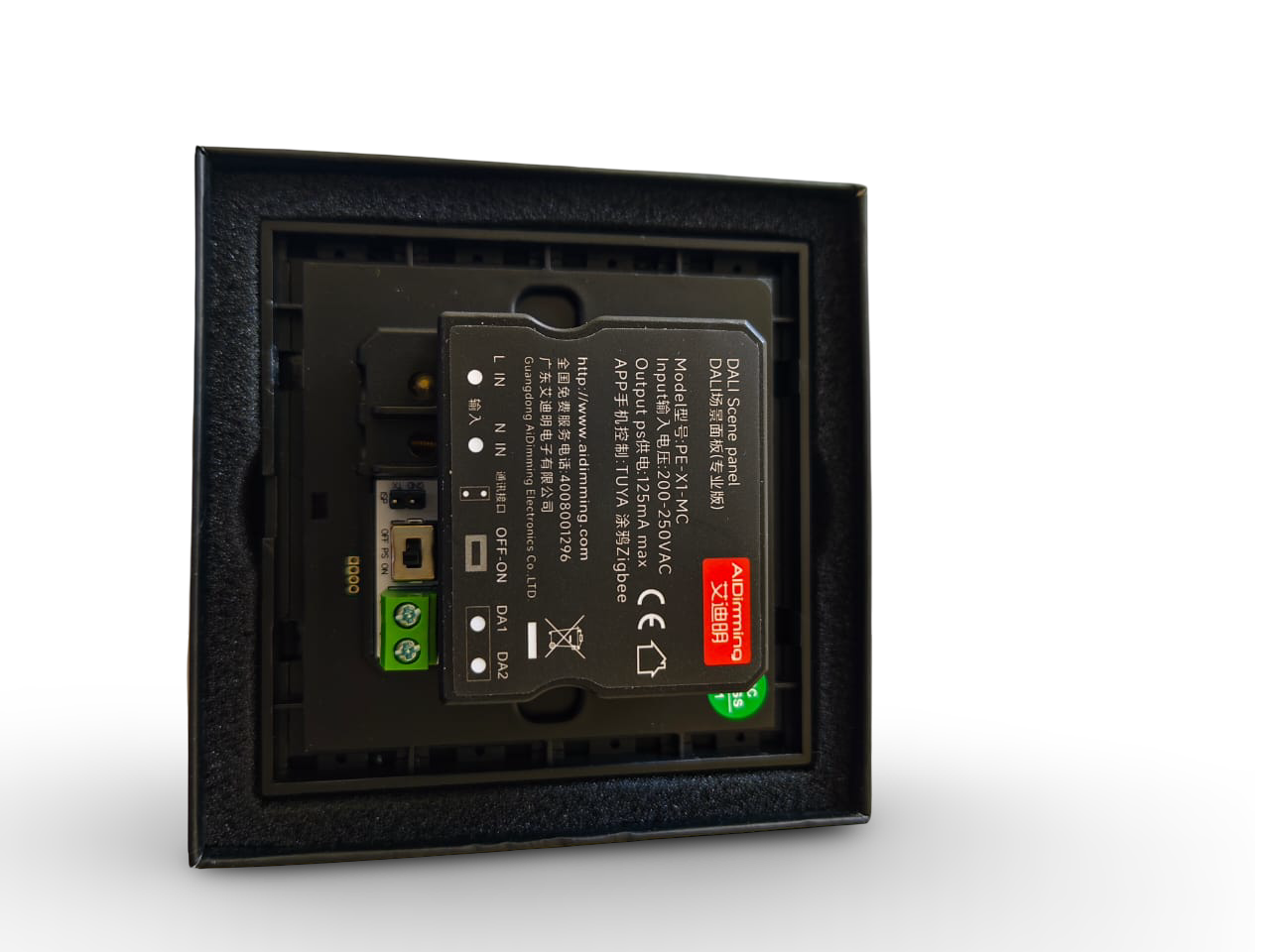

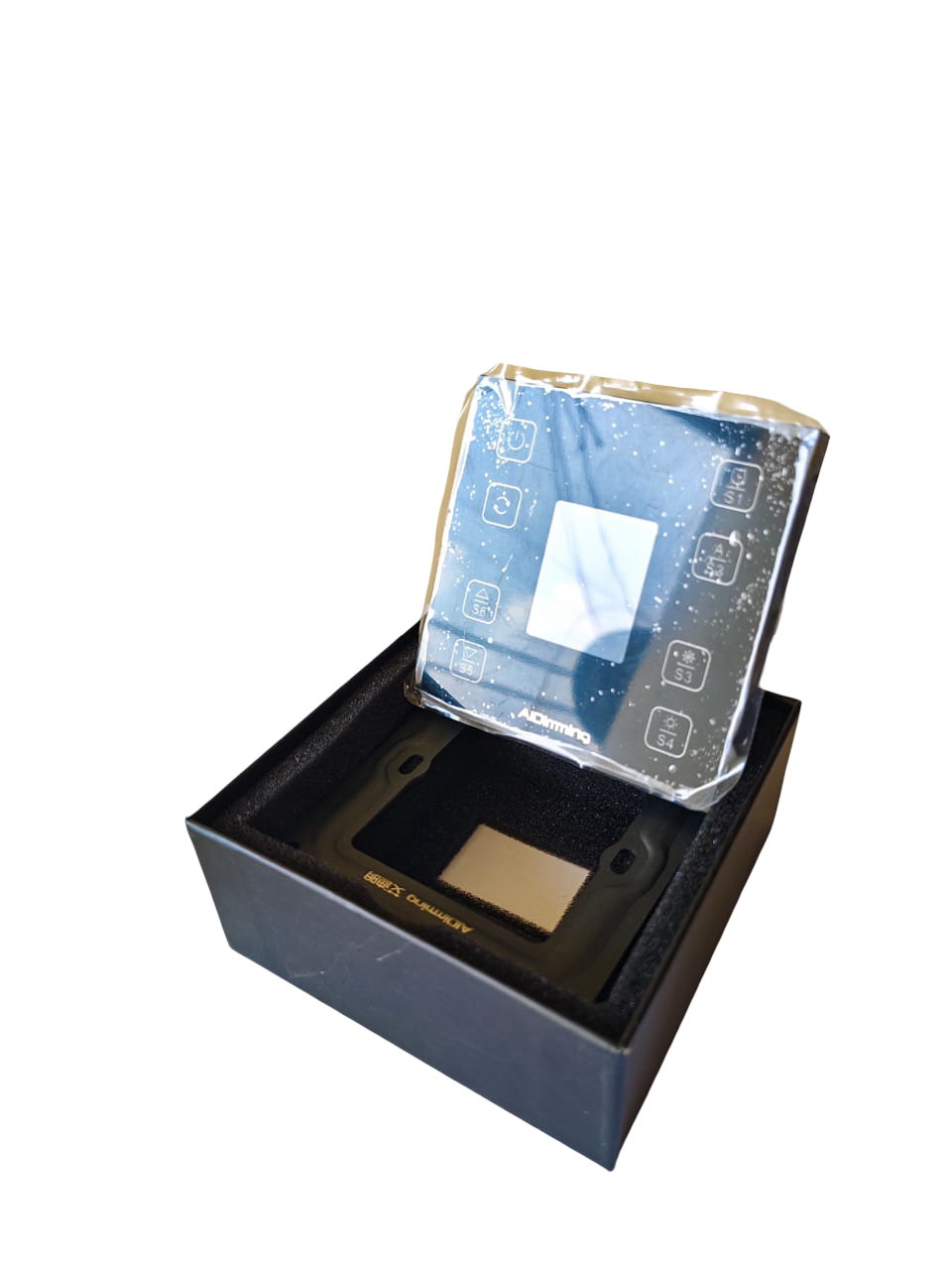

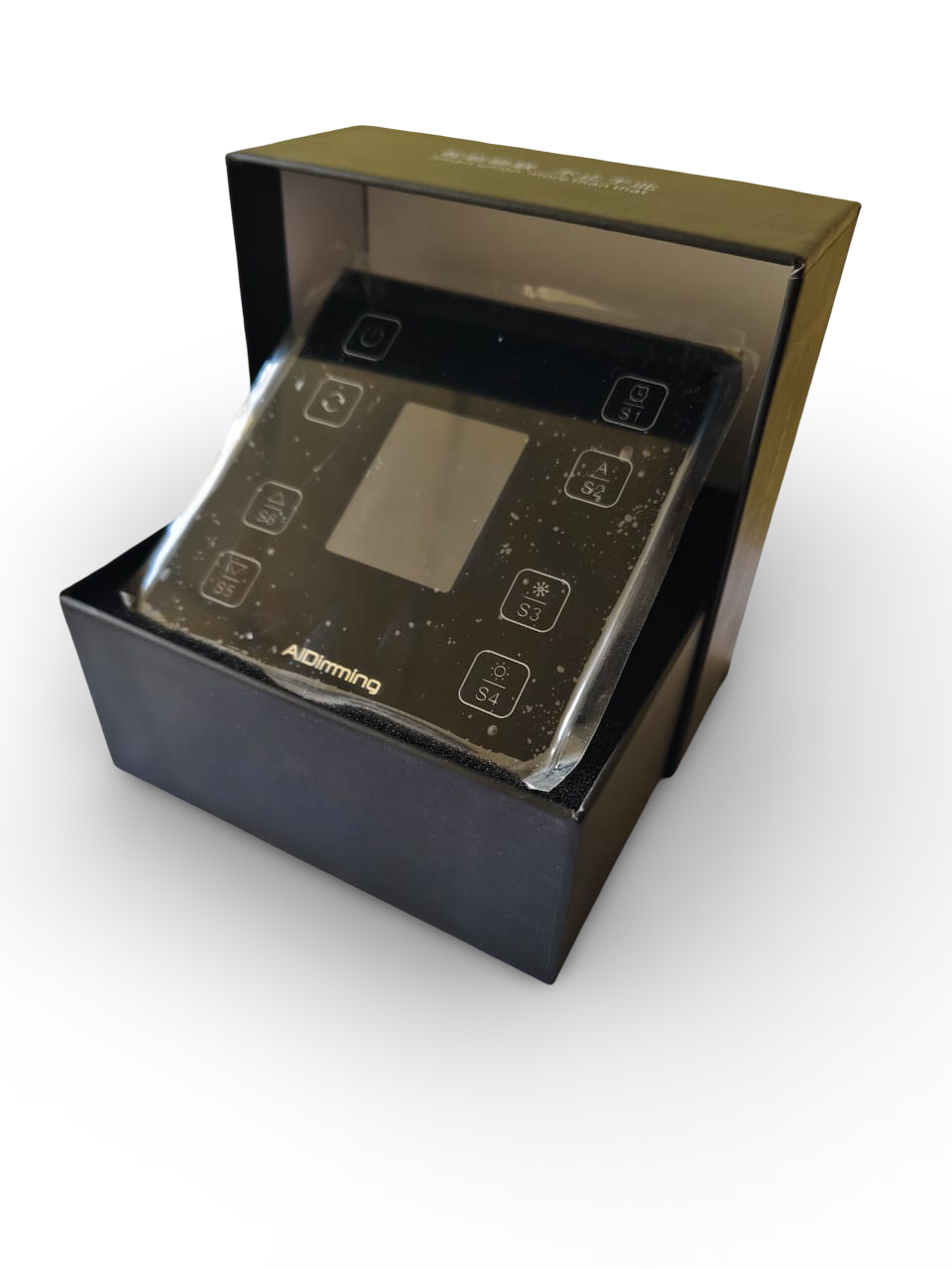

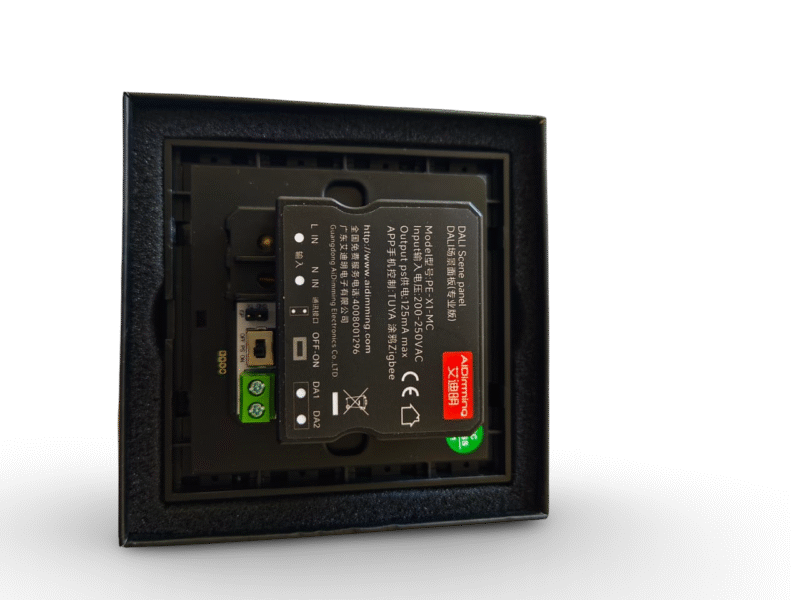

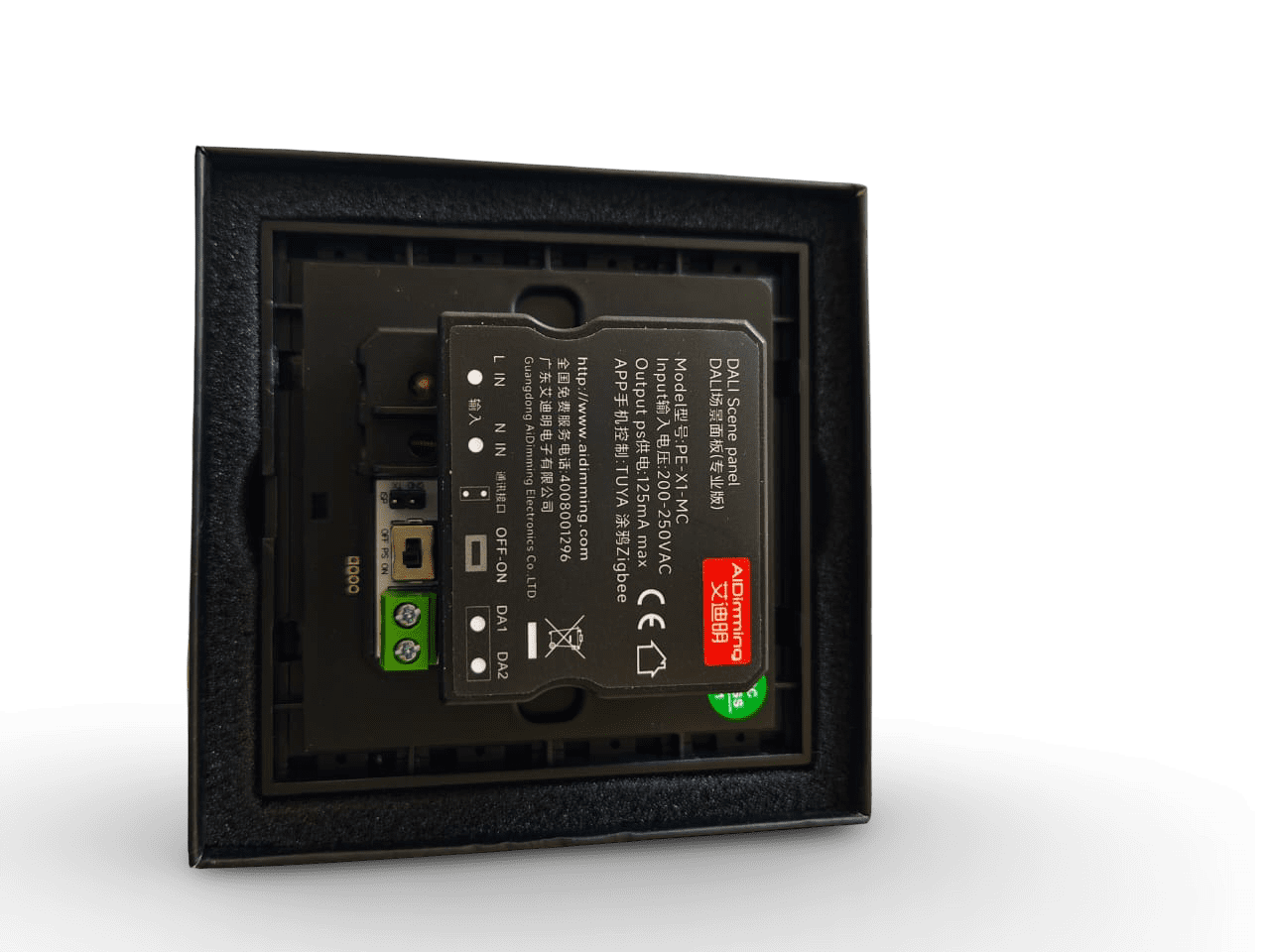

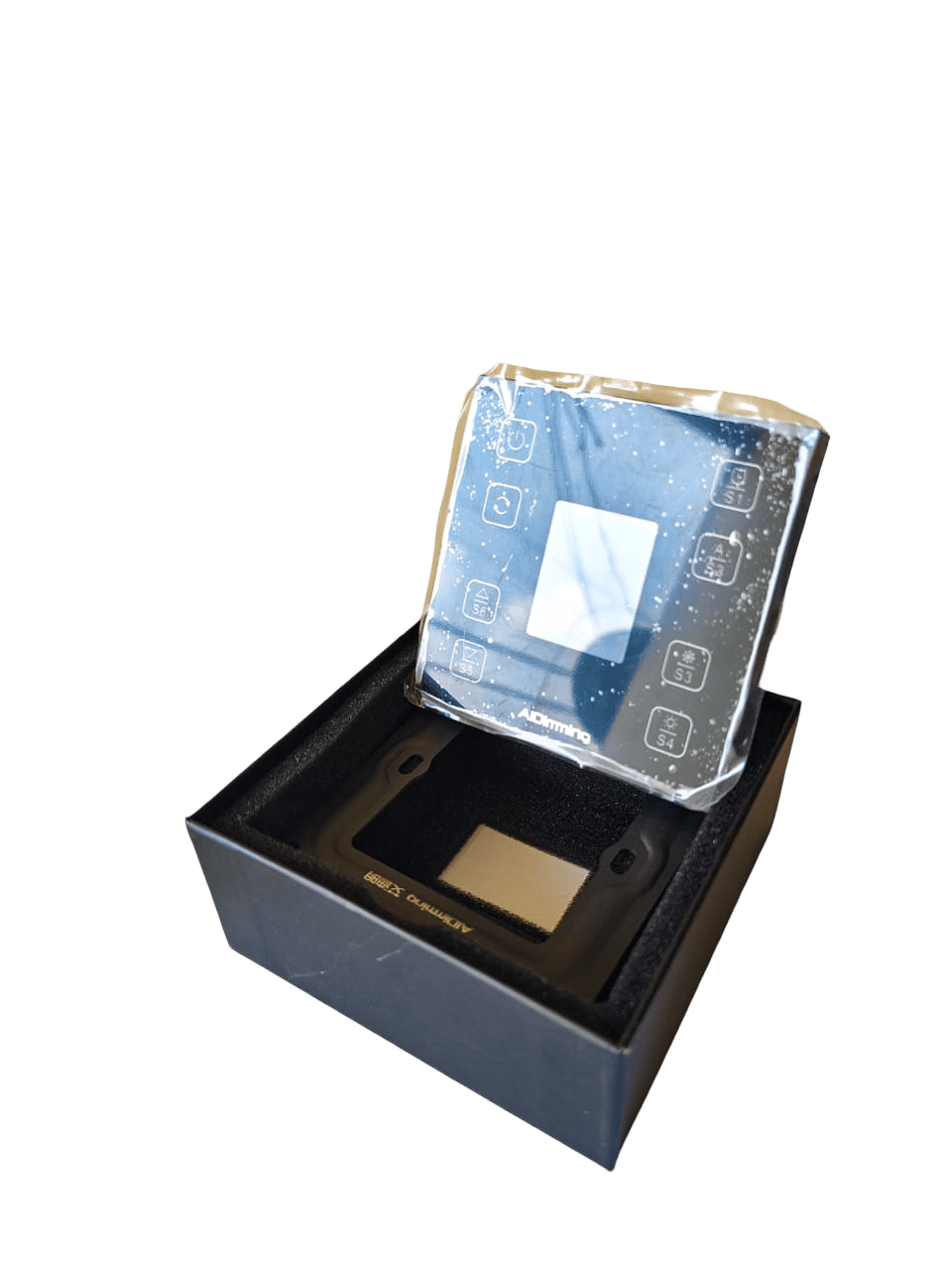

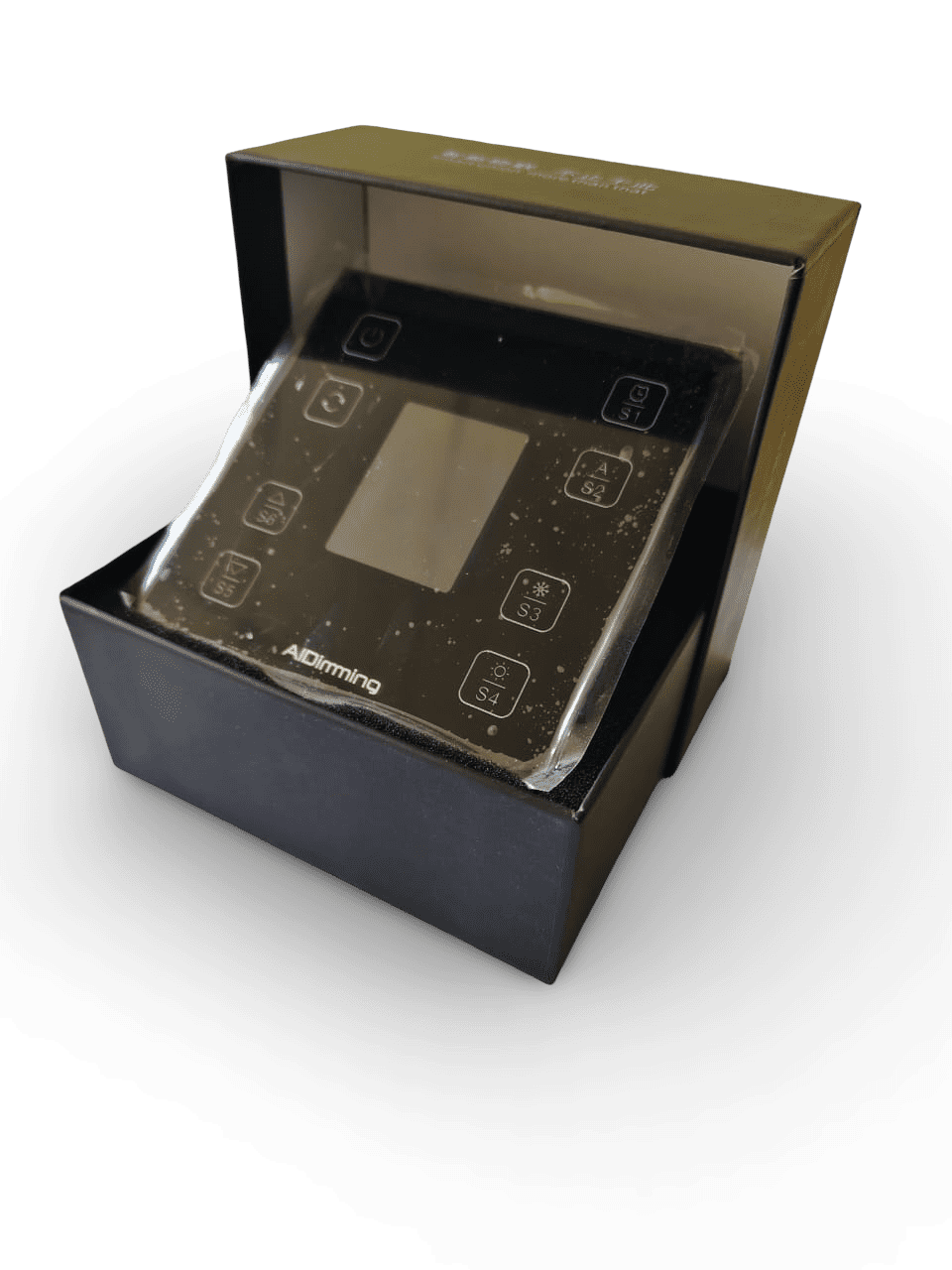

The DALI Scene Panel X1-MC is a versatile and modern DALI controller designed for intuitive lighting scene management. With up to 16 programmable scene triggers and built-in DALI power supply (125mA), it serves as an ideal solution for centralized control in small to mid-sized DALI networks.
Category | Parameter | Specification |
---|---|---|
Model | – | PE-X1-DALI |
Output | Voltage | 16–22V DC |
Max Output Voltage | 22V DC | |
Current | 125mA | |
Dimming Range | 0–100% | |
Dimming Interface | DALI (IEC 62386) | |
Power-Off Mode | Power-off memory function | |
Load Capacity | Up to 64 devices | |
Input | Input Voltage | 200–250V AC |
Frequency | 50/60Hz | |
Function | Touch Keys | 8 keys |
Timing ON/OFF | Yes | |
Delay OFF | Turn-off delay: 30 seconds | |
Mobile App | Tuya App | |
Color Temperature | Custom setting | |
Scene Settings | 2 customizable scenarios | |
Protection | Working Temperature | ta: 45°C, tc: 80°C |
Working Humidity | 20–95% RH, non-condensing | |
Storage Temperature & Humidity | -40 ~ 80°C, 10–95% RH | |
Safety & EMC | Withstand Voltage | I/P-O/P: 3750V AC |
Isolation Resistance | I/P-O/P: 100MΩ / 500V DC (25°C / 70% RH) | |
Others | Dimensions (L×W×H) | 86×86×33 mm |
Packing | Color box | |
Weight | 200g ±10g |
