AiDimming 12W TRIAC Dimmable LED Driver 300mA Constant Current | 200-250V AC | PE-L12DA40 | Leading & Trailing Edge Compatible | TUV Certified
Original price was: ₹850.00.₹650.00Current price is: ₹650.00.
Key Features
✔ TRIAC Dimmable LED Driver – Supports leading edge & trailing edge wall dimmers
✔ 300mA Constant Current Output – Stable ±5% output for longer LED life
✔ 12.6W Maximum Output Power – Ideal for LED panel lights & downlights
✔ Wide Input Voltage (200–250V AC) – Suitable for Indian power supply
✔ Output Voltage 25–42V DC – Safe constant current operation
✔ TUV, CE & RoHS Certified – Quality and safety assured
✔ Smooth Dimming Performance – Flicker-controlled brightness adjustment
✔ Built-in Protection – Short circuit, overload & overvoltage protection
Technical Specifications
-
Model: PE-L12DA40
-
Input Voltage: 200–250V AC, 50/60Hz
-
Output Voltage: 25–42V DC
-
Output Current: 300mA ±5%
-
Maximum Output Power: 12.6W
-
Dimming Type: TRIAC (Leading & Trailing Edge Compatible)
-
Power Factor: 0.9
-
Operating Temperature: -20°C to +45°C
-
Tc Temperature: 85°C
-
Certifications: TUV, CE, RoHS, SELV
-
Manufacturer: Guangdong AiDimming Electronics Co., Ltd.
Description

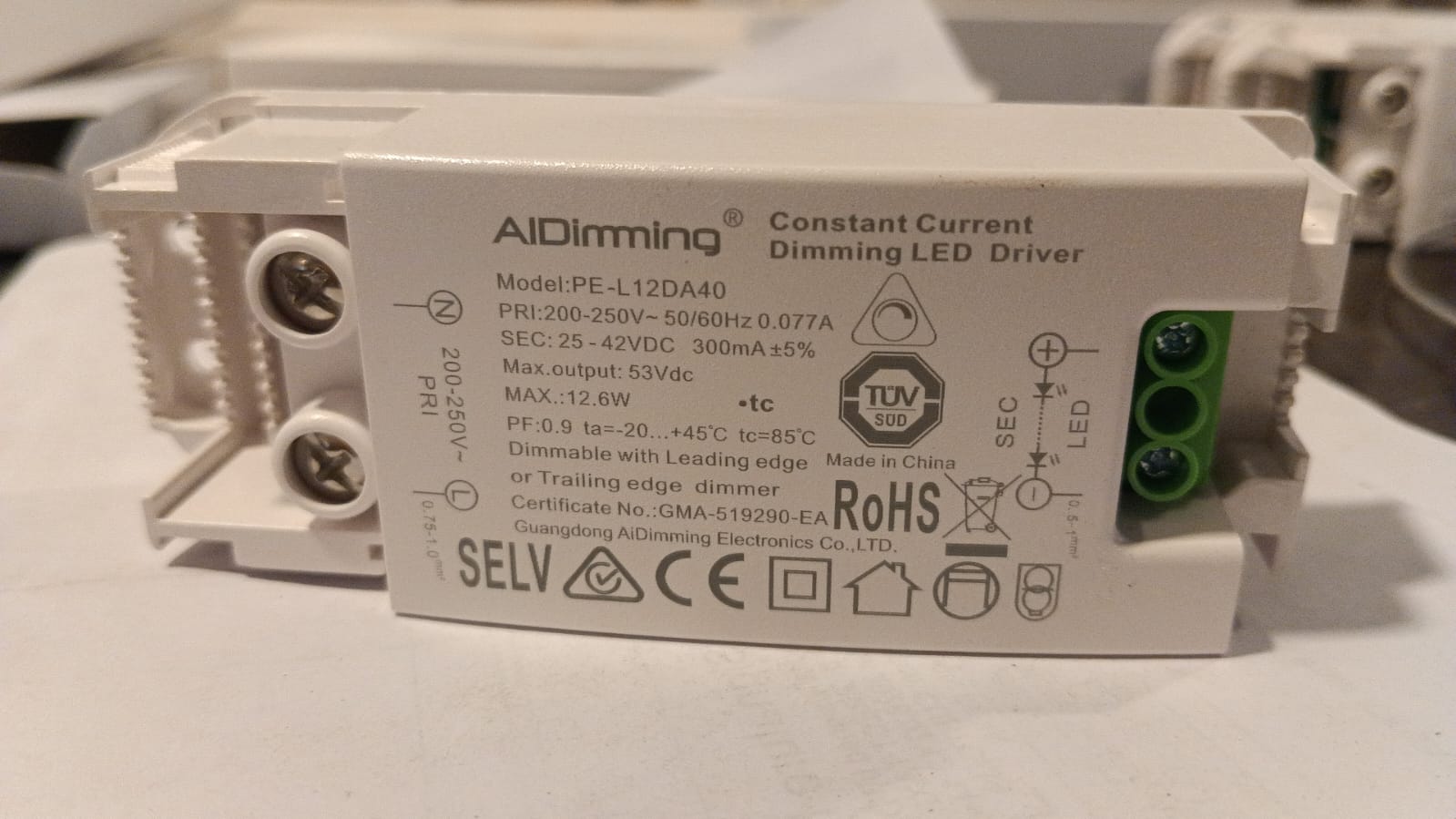

The AiDimming PE-L12DA40 Constant Current TRIAC Dimmable LED Driver is designed for reliable and smooth dimming performance in residential and commercial lighting applications.
Delivering a stable 300mA ±5% output current, this driver ensures consistent brightness and extended lifespan of LED fixtures. It is compatible with both leading edge and trailing edge TRIAC dimmers, allowing easy integration with standard wall dimmer switches.
TRIAC Dimmable LED Driver – Supports leading edge & trailing edge wall dimmers
✔ 300mA Constant Current Output – Stable ±5% output for longer LED life
✔ 12.6W Maximum Output Power – Ideal for LED panel lights & downlights
✔ Wide Input Voltage (200–250V AC) – Suitable for Indian power supply
✔ Output Voltage 25–42V DC – Safe constant current operation
✔ TUV, CE & RoHS Certified – Quality and safety assured
✔ Smooth Dimming Performance – Flicker-controlled brightness adjustment
✔ Built-in Protection – Short circuit, overload & overvoltage protection
