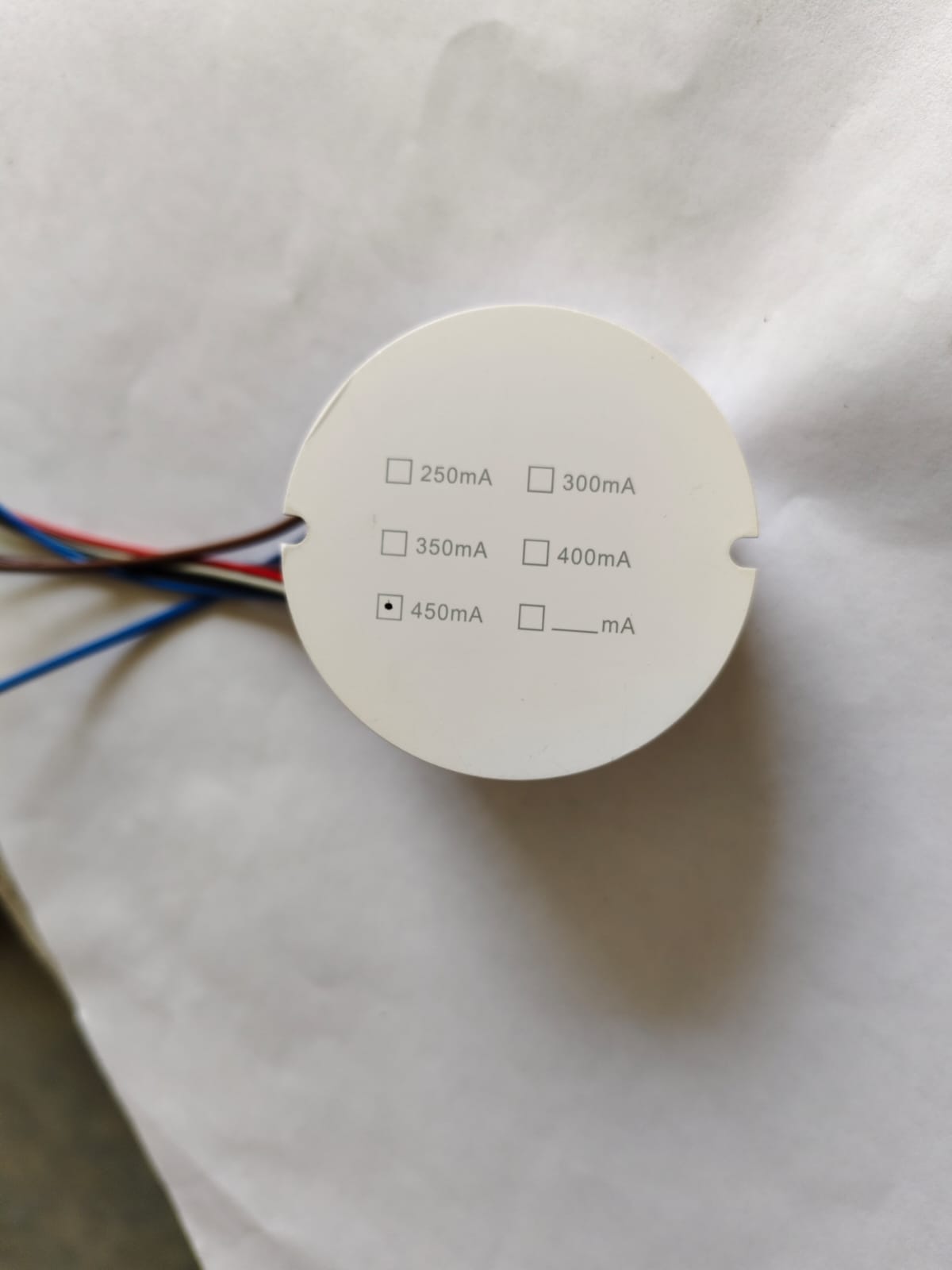

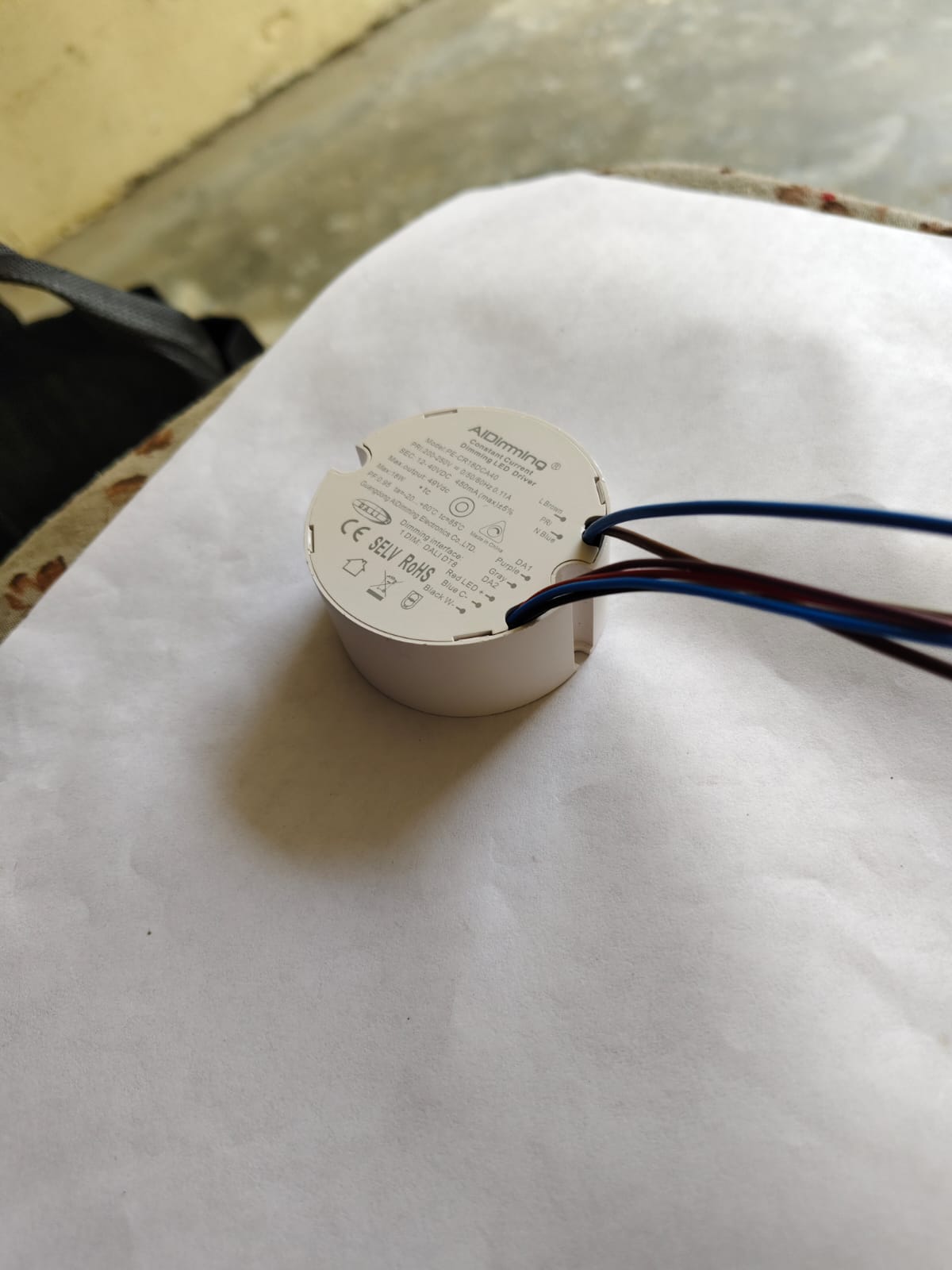

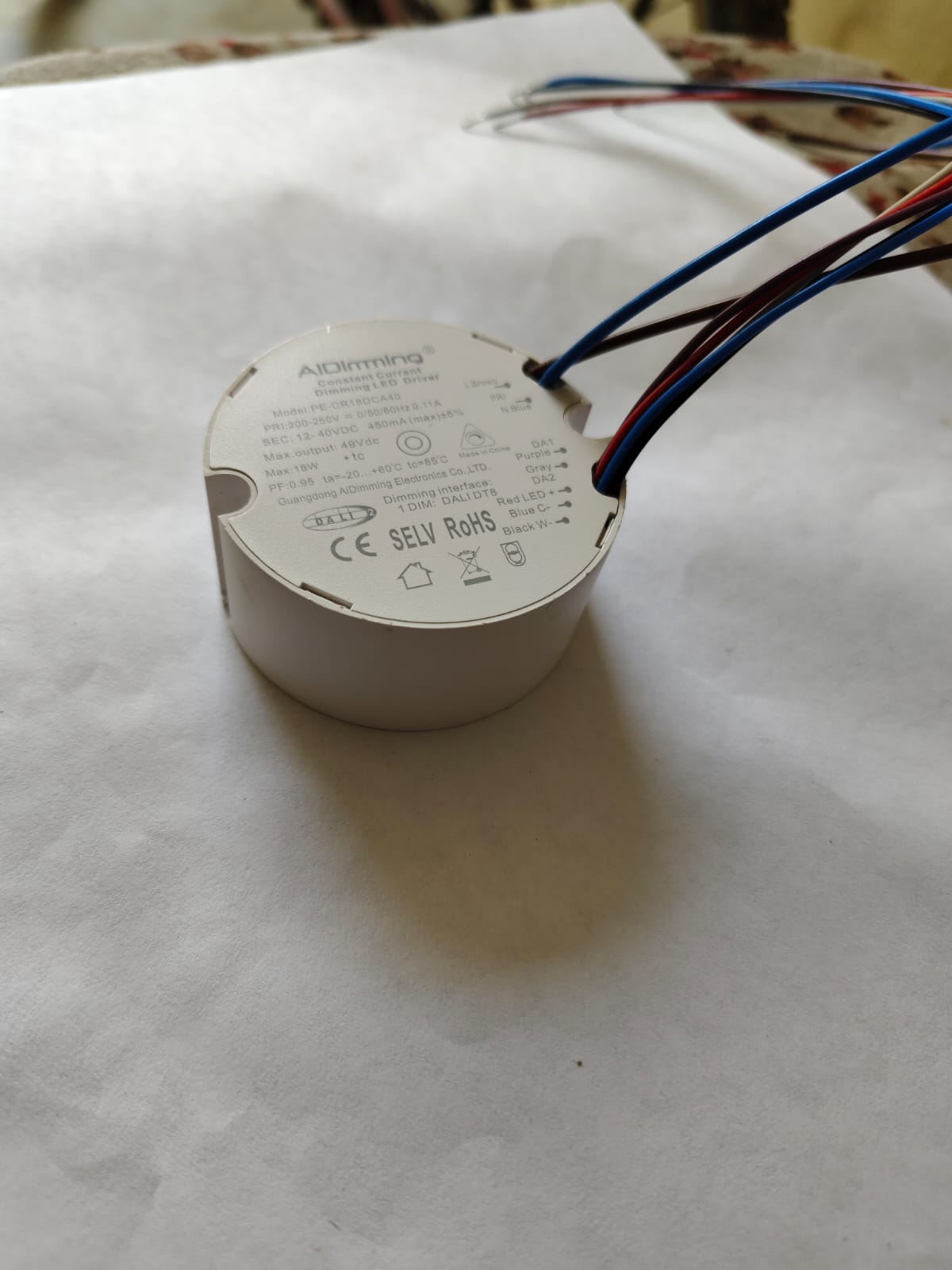

⚡ AiDimming 450mA 49V Constant Current LED Driver – Compact Power for Smart LED Solutions
Model: PE-CR18DCA40
Input Voltage: 220-240V AC | Output Current: 450mA
Output Voltage: 49V DC | Wattage: Up to 20W
Driver Type: Constant Current
Shape: Ultra-Compact Round Design
Certifications: CE, SELV, RoHS, ENEC
| Category | Parameter | PE-CR12DCA40 | PE-CR12DA40 |
|---|---|---|---|
| OUTPUT | Output Voltage | 9–40Vdc | 9–40Vdc |
| No-load Output Voltage | 47Vdc | 47Vdc | |
| Output Current | 100–300mA | 100–300mA | |
| Output Power | 1.5W–12W | 1.5W–12W | |
| Strobe Level | No flicker percent (IEEE 1789 = 0~0.3789), flicker index < 0.005, SVM = 0.004 | Same | |
| Dimming Range | 0–100%, LEDstart at 0.03% possible | Same | |
| PWM Dimming Frequency | >3600Hz | Same | |
| Current Accuracy | ±3% | Same | |
| Power Down Mode | Memory function when power down | Same | |
| NFC | Support | — | |
| INPUT | Dimming Interface | DALI (IEC62386), signal control current < 2mA | Same |
| Input Voltage Range | 200–250Vac | Same | |
| Frequency | 50/60Hz | Same | |
| Input Current | <0.07A @230V | Same | |
| Power Factor | PF >0.95/230V (at full load) | Same | |
| THD | 230Vac @ THD <7% (at full load) | Same | |
| Efficiency (typ.) | 87% | Same | |
| Inrush Current (typ.) | Cold start 38A, 420ns @230Vac | Same | |
| Anti Surge | L–N: 1.5kV | Same | |
| Leakage Current | <0.25mA @230Vac | Same | |
| Standby Power | <0.4W | Same | |
| ENVIRONMENT | Working Temperature | ta: -25~60°C, tc: 85°C | Same |
| Working Humidity | 20–95% RH, non-condensing | Same | |
| Storage Temp., Humidity | -40–80°C, 10–95% RH | Same | |
| Temp. Coefficient | ±0.03%/°C (0–50°C) | Same | |
| Vibration | 10–500Hz, 2G, 12min./1cycle, total 72min. (X, Y, Z axes) | Same | |
| PROTECTION | Overheat Protection | Output current adjusted/off if PCB temp >110°C, auto recovers | Same |
| Overload Protection | Shuts down when rated power >102%, auto recovers | Same | |
| Short Circuit Protection | Shuts down automatically, auto recovers | Same | |
| No-load Protection | Output constant voltage | Same | |
| SAFETY & EMC | Withstand Voltage | I/P–O/P: 3750Vac | Same |
| Isolation Resistance | I/P–O/P: 100MΩ / 500VDC (25°C/70% RH) | Same | |
| Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13 | Same | |
| EMC Emission | — | — | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 | Same | |
| Strobe Test Standard | IEEE 1789 | Same | |
| OTHERS | Waterproof Grade | IP65 | Same |
| Dimension (L×W×H) | 50×50×22.6mm | Same | |
| Packing | Box | Same | |
| Weight (G.W.) | 76g ±10g | Same |
