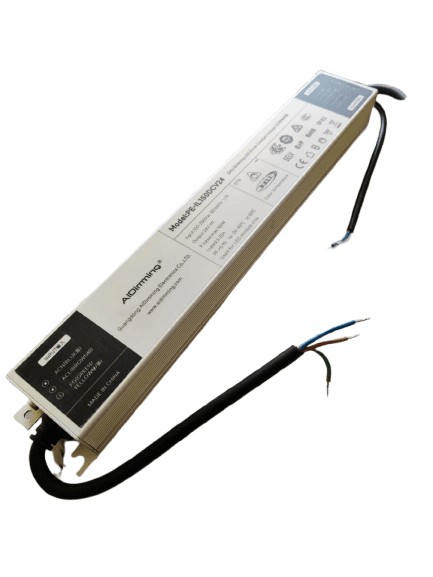

IP65 vs IP67 vs IP68 LED Drivers:

When selecting LED drivers for your lighting projects, understanding IP (Ingress Protection) ratings is crucial for ensuring longevity, safety, and optimal performance. Whether you’re installing outdoor landscape lighting, industrial fixtures, or marine applications, choosing the right IP-rated LED driver can mean the difference between a reliable installation and costly premature failures.

In this comprehensive guide, we’ll break down the differences between IP65, IP67, and IP68 LED drivers, helping you make an informed decision for your specific application.

What Does IP Rating Mean?

The IP rating system is an international standard (IEC 60529) that classifies the degree of protection provided by electrical enclosures against intrusion of solid objects and liquids. The rating consists of two digits:

First Digit (Solid Particle Protection): Ranges from 0-6, indicating protection against solid objects like dust and debris.

Second Digit (Liquid Ingress Protection): Ranges from 0-9, indicating protection against water and moisture.

For LED drivers, we’re primarily concerned with ratings of IP65, IP67, and IP68, all of which offer the highest level of dust protection (rating of 6) but differ in their water resistance capabilities.

Understanding the Numbers

The First Digit: Dust Protection (6)

All three ratings feature a “6” as the first digit, which means they provide complete protection against dust ingress. No dust particles can penetrate the enclosure, making these drivers suitable for dusty environments, construction sites, and outdoor applications where airborne particles are present.

The Second Digit: Water Protection (5, 7, 8)

This is where the key differences lie:

• 5: Protection against water jets from any direction
• 7: Protection against temporary immersion in water
• 8: Protection against continuous immersion in water

IP65 LED Drivers: Jet-Proof Protection

What IP65 Means

IP65-rated LED drivers offer protection against low-pressure water jets from any direction. They can withstand rain, splashing, and hosing down but are not designed for submersion in water.

Best Applications for IP65

IP65 drivers excel in these environments:

• Covered outdoor areas: Patios, covered walkways, and canopies where direct rain exposure is minimal
• Indoor damp locations: Bathrooms, kitchens, and commercial food preparation areas
• Light industrial settings: Warehouses and factories with occasional water exposure
• Landscape lighting: Garden lights, pathway illumination, and architectural lighting with some weather protection
• Commercial signage: Outdoor signs mounted under awnings or overhangs

Advantages of IP65

IP65 drivers offer several benefits for appropriate applications. They typically cost less than higher-rated options, provide excellent protection for most outdoor environments, offer good heat dissipation due to less stringent sealing requirements, and are widely available in various wattages and specifications.

Limitations of IP65

However, IP65 drivers have some restrictions. They’re not suitable for submersion, may fail if exposed to heavy rain for extended periods, require mounting in locations protected from direct water pooling, and need replacement if water damage occurs.

IP67 LED Drivers: Submersion-Resistant Protection

What IP67 Means

IP67-rated LED drivers can withstand temporary immersion in water up to 1 meter deep for up to 30 minutes. They offer significantly enhanced water protection compared to IP65 units.

Best Applications for IP67

IP67 drivers are ideal for more demanding environments:

• Ground-level outdoor lighting: In-ground uplights, pathway markers, and bollard lights
• Marine environments: Dock lighting, boat lighting, and coastal installations
• Wet industrial locations: Food processing plants, car washes, and cleaning facilities
• Fountains and water features: Lights near or around water elements (not fully submerged)
• Harsh weather locations: Areas prone to heavy rain, snow accumulation, or flooding
• Underground installations: Shallow burial applications where temporary flooding may occur

Advantages of IP67

IP67 drivers provide robust protection for challenging conditions. They survive accidental submersion, handle pressure washing and heavy rain, offer peace of mind in flood-prone areas, and maintain performance in high-humidity environments.

Limitations of IP67

Despite their capabilities, IP67 drivers have some constraints. They cost more than IP65 alternatives, are not rated for continuous submersion, may have limited heat dissipation due to tighter sealing, and require proper cable gland installation to maintain rating.

IP68 LED Drivers: Maximum Protection

What IP68 Means

IP68 represents the highest level of water protection for LED drivers. These units can withstand continuous immersion in water beyond 1 meter depth. The exact depth and duration are specified by the manufacturer, with some IP68 drivers rated for depths of 3 meters or more.

Best Applications for IP68

IP68 drivers are essential for the most demanding water-exposed applications:

• Underwater lighting: Swimming pools, ponds, aquariums, and water features
• Submerged marine lighting: Underwater boat lights, dock illumination, and nautical applications
• Permanent wet locations: Fountains, waterfalls, and decorative water installations
• Flood-prone areas: Basements, underground parking, and locations with regular water exposure
• Extreme outdoor environments: Coastal areas with salt spray, locations with standing water
• Industrial washdown areas: Facilities requiring daily high-pressure cleaning

Advantages of IP68

IP68 drivers offer the ultimate protection. They’re designed for continuous underwater use, provide maximum peace of mind for critical applications, handle extreme environmental conditions, and often feature enhanced build quality and materials.

Limitations of IP68

The superior protection comes with trade-offs. IP68 drivers command premium pricing, have limited heat dissipation requiring careful thermal management, offer fewer options in terms of wattage and features, and require professional installation for optimal performance.

Key Factors to Consider When Choosing

Environmental Conditions

Assess the actual conditions where your LED driver will operate. Consider rainfall intensity and frequency, potential for water pooling or flooding, exposure to water jets from cleaning or maintenance, humidity levels and condensation potential, and the presence of dust, debris, or corrosive elements.

Installation Location

Where and how you mount the driver matters significantly. Determine if it’s above ground level or at ground level, exposed or protected by structures, easily accessible for maintenance or hard to reach, in a temperature-controlled environment or subject to extreme heat or cold, and near water sources or in dry locations.

Budget Considerations

IP ratings directly impact cost. IP65 drivers offer the most economical solution for suitable applications. IP67 drivers provide a mid-range option balancing protection and price. IP68 drivers represent a significant investment justified only when necessary.

Consider total cost of ownership, including potential replacement costs if an inadequate rating fails prematurely.

Thermal Management

Higher IP ratings mean tighter sealing, which affects heat dissipation. All LED drivers generate heat during operation, and proper thermal management is crucial for longevity. IP65 drivers typically dissipate heat most effectively due to less stringent sealing. IP67 drivers require careful consideration of ambient temperature and load. IP68 drivers often need derating in enclosed spaces or may require active cooling solutions.

Installation and Maintenance

Consider the long-term implications of your choice. Drivers with higher IP ratings often require specialized cable glands and installation techniques, may be more difficult to service or replace, need professional installation to maintain warranty and rating, and should be inspected regularly for seal integrity.

Practical Decision-Making Guide

Choose IP65 When:

You should select IP65 drivers if your installation is in a covered outdoor area, the driver will be mounted above potential water accumulation points, exposure to water will be occasional and indirect (rain, splashing), budget is a primary concern and IP65 meets minimum requirements, or easy heat dissipation is important for your application.

Choose IP67 When:

IP67 drivers are appropriate if your installation is at or near ground level in outdoor environments, there’s potential for temporary flooding or submersion, the location experiences heavy rain or requires pressure washing, you need reliable protection in marine or high-humidity environments, or the application demands more protection than IP65 but doesn’t require permanent submersion.

Choose IP68 When:

Select IP68 drivers when the driver must operate underwater continuously, your application is in a permanently wet environment, maximum protection is required regardless of cost, the installation is in a critical application where failure is unacceptable, or you’re working with swimming pools, fountains, or submerged lighting.

Common Mistakes to Avoid

Over-Engineering Protection

Don’t pay for IP68 protection when IP65 would suffice. Assess your actual needs rather than defaulting to maximum protection. Over-specification wastes budget and may create unnecessary thermal management challenges.

Under-Protecting Critical Applications

Conversely, don’t compromise on IP rating to save costs in truly demanding environments. A failed IP65 driver in a location requiring IP67 will cost more in replacement, labor, and downtime than initially investing in the appropriate rating.

Ignoring Cable Entry Points

The IP rating only applies when properly installed. Cable entry points are common failure points. Always use appropriate cable glands, seals, and installation methods recommended by the manufacturer to maintain the stated IP rating.

Neglecting Thermal Considerations

Higher IP ratings trap heat. Ensure your installation allows for adequate heat dissipation, consider ambient temperature conditions, and follow manufacturer derating guidelines for enclosed or hot environments.

Mixing IP Ratings

Using drivers with different IP ratings in the same project may create maintenance confusion and inconsistent performance. Standardize where possible for easier inventory management and maintenance planning.

Installation Best Practices

For All IP Ratings:

Regardless of which IP rating you choose, follow these essential practices. Use manufacturer-approved cable glands and connectors, apply appropriate sealant to all entry points, mount drivers with cable entries facing downward when possible to prevent water intrusion, allow adequate ventilation space around the driver for heat dissipation, protect from direct sunlight to prevent UV degradation and excessive heat, secure mounting to prevent vibration damage, and follow all local electrical codes and regulations.

Additional Tips for IP67 and IP68:

For higher-rated drivers, double-check all seals and connections before installation, use marine-grade or stainless steel mounting hardware in corrosive environments, consider submersion depth ratings for IP68 applications, test installations before final deployment when possible, document installation procedures for future maintenance, and plan for periodic inspection and maintenance schedules.

Real-World Application Examples

Example 1: Residential Garden Lighting

A homeowner wants to illuminate garden pathways and highlight landscaping features. The lights will be in open garden areas with some tree cover, experiencing normal rainfall but no standing water. The drivers will be mounted in weatherproof junction boxes 12 inches above ground level.

Recommendation: IP65 LED drivers are ideal for this application, providing adequate protection against rain and garden irrigation while keeping costs reasonable.

Example 2: Commercial Building Ground-Level Lighting

An office complex needs ground-level LED lights along walkways and building perimeters. The area experiences heavy seasonal rain, and the facilities team pressure washes sidewalks quarterly. Some low-lying areas occasionally experience minor flooding during storms.

Recommendation: IP67 LED drivers are essential here due to the combination of pressure washing, potential temporary flooding, and critical nature of maintaining lighting for safety and security.

Example 3: Residential Swimming Pool

A homeowner wants to install underwater LED lights in their swimming pool for evening swimming and aesthetic appeal. The drivers will power lights that remain permanently submerged at depths of 4-6 feet.

Recommendation: IP68 LED drivers rated for continuous submersion at the appropriate depth are absolutely necessary for this application. This is non-negotiable for safety and functionality.

Cost-Benefit Analysis

Initial Investment

On average, expect pricing relationships of IP65 drivers at baseline cost, IP67 drivers at 30-50% more than IP65, and IP68 drivers at 50-100% more than IP65. Exact pricing varies by wattage, brand, and features.

Long-Term Value

Consider total cost of ownership over the expected lifespan. Using an insufficient IP rating in a demanding environment leads to premature failure, replacement costs, labor for reinstallation, potential damage to connected LED fixtures, and downtime or loss of illumination.

Investing in the appropriate IP rating from the start prevents these costs and ensures reliable performance throughout the intended service life.

Future-Proofing Your Installation

When making your decision, consider potential changes to the installation environment. Climate change is increasing rainfall intensity and flooding frequency in many regions. Property use may change, exposing drivers to more demanding conditions. Maintenance procedures may evolve, requiring pressure washing or other water exposure.

In uncertain situations, selecting one IP rating higher than the minimum requirement provides a safety margin and extends potential installation lifespan.

Conclusion

Choosing between IP65, IP67, and IP68 LED drivers comes down to accurately assessing your application’s environmental demands, installation location, budget constraints, and long-term requirements.

Quick Selection Summary:

• IP65: Protected outdoor locations, covered areas, cost-conscious installations with indirect water exposure
• IP67: Ground-level installations, areas with heavy rain or temporary flooding, locations requiring regular pressure washing
• IP68: Underwater applications, permanent wet locations, critical installations requiring maximum protection

Remember that the IP rating is just one factor in selecting LED drivers. Also consider wattage requirements, dimming compatibility, voltage specifications, warranty terms, and manufacturer reputation.

By carefully evaluating your specific needs against the protection levels offered by each IP rating, you’ll select the LED driver that delivers reliable performance, appropriate protection, and the best value for your application.

Investing time in proper selection now prevents headaches, replacement costs, and potential safety issues down the road. When in doubt, consult with lighting professionals or electrical engineers who can assess your specific situation and provide expert recommendations.

Your lighting installation is only as reliable as its weakest component—make sure your LED drivers are up to the task.
