DALI vs TRIAC: Which Lighting Control Is Best?

Choosing the right lighting control system can feel overwhelming. Two popular options you’ll come across are DALI and TRIAC dimming. But which one is better for your project? In this guide, we’ll break down everything you need to know about DALI and TRIAC lighting controls in simple terms, so you can make the best choice for your needs.

What Is Lighting Control and Why Does It Matter?

Before we dive into DALI and TRIAC, let’s talk about why lighting control matters. Lighting control systems allow you to adjust the brightness of your lights, turn them on and off, and even create different lighting scenes. This gives you:

• Energy savings – Dimmed lights use less electricity
• Better comfort – Adjust lighting to match different activities
• Longer bulb life – Dimmed LEDs last longer
• Smart building integration – Connect lights to automation systems

Now let’s explore the two main technologies: DALI and TRIAC.

What Is TRIAC Dimming?

TRIAC stands for Triode for Alternating Current. It’s a type of electronic component used for dimming lights. TRIAC dimming is also called “phase-cut dimming” or “leading-edge dimming.”

How TRIAC Dimming Works

TRIAC dimmers work by cutting off part of the electrical wave that powers your lights. Imagine the electricity flowing to your light like waves in the ocean. A TRIAC dimmer chops off the beginning of each wave, reducing the power that reaches the bulb. Less power means less light.

This technology has been around since the 1960s and was originally designed for incandescent bulbs. Today, many LED lights are also compatible with TRIAC dimming.

Key Features of TRIAC Dimming

Simple Installation TRIAC dimmers are easy to install. They replace your standard light switch and connect with just two wires. No special training needed – most electricians are already familiar with this system.

Cost-Effective TRIAC dimmers are relatively inexpensive. A basic TRIAC dimmer switch costs anywhere from $15 to $100, making it affordable for homes and small businesses.

Wide Availability You can find TRIAC dimmers at any hardware store. They come in many styles, from rotary knobs to sliding controls and touch panels.

Works with Existing Wiring TRIAC systems use your existing electrical wiring. No need to run new cables or rewire your building.

Limitations of TRIAC Dimming

Compatibility Issues Not all LED lights work well with TRIAC dimmers. Some LEDs may flicker, buzz, or not dim smoothly. You need to check that your LEDs are “TRIAC dimmable” or “phase-cut dimmable.”

Limited Control Range TRIAC dimmers typically dim from 100% down to about 10%. You usually can’t get very low light levels without flickering or the light turning off completely.

No Feedback or Monitoring TRIAC systems can’t tell you if a bulb has burned out or report energy usage. They’re one-way controls with no communication back to you.

Heat Generation TRIAC dimmers generate heat, which is why they often feel warm to the touch. This wastes some energy and can shorten the dimmer’s lifespan.

What Is DALI Lighting Control?

DALI stands for Digital Addressable Lighting Interface. It’s a modern, digital protocol specifically designed for lighting control. Think of it as a language that lights and controllers use to communicate with each other.

How DALI Works

DALI is a two-way digital communication system. A DALI controller sends digital commands over a special control cable to DALI-compatible lights. Each light (or group of lights) has its own digital address, like a phone number. The controller can talk to each light individually or to groups of lights at once.

Unlike TRIAC, DALI doesn’t cut the power to dim lights. Instead, it sends digital instructions telling the light driver exactly how bright to be. The light receives these instructions and adjusts accordingly.

Key Features of DALI Lighting Control

Individual Light Control With DALI, you can control up to 64 individual lights or devices on a single control line. Each light can have its own brightness level, independent of the others.

Precise Dimming DALI offers smooth, precise dimming from 100% down to less than 1%. No flickering, no buzzing – just smooth, consistent light control.

Two-Way Communication DALI systems can report back information. They can tell you if a bulb has failed, how much energy is being used, and the status of each light. This makes maintenance easier and more efficient.

Create Lighting Scenes DALI allows you to program different lighting scenes. With the press of a button, you can switch between “presentation mode,” “meeting mode,” or “cleaning mode,” each with different brightness levels.

Integration with Building Systems DALI can connect with other building management systems like HVAC, security, and occupancy sensors. This creates a truly smart building where everything works together.

No Interference Since DALI uses digital signals, there’s no electrical interference or compatibility issues with LED drivers. Every DALI device speaks the same language.

Limitations of DALI

Higher Initial Cost DALI systems cost more upfront. DALI drivers, controllers, and sensors are more expensive than TRIAC equivalents. A DALI installation might cost 2-3 times more than a basic TRIAC setup.

More Complex Installation Installing DALI requires running separate control cables alongside your power cables. This means more planning and potentially more labor costs.

Requires Programming DALI systems need to be programmed or commissioned. You’ll need to assign addresses to devices, create groups, and set up scenes. This usually requires specialized knowledge or hiring a professional.

Specialized Components Not all lights are DALI-compatible. You need to specifically purchase DALI drivers and fixtures, which are less common in regular hardware stores.

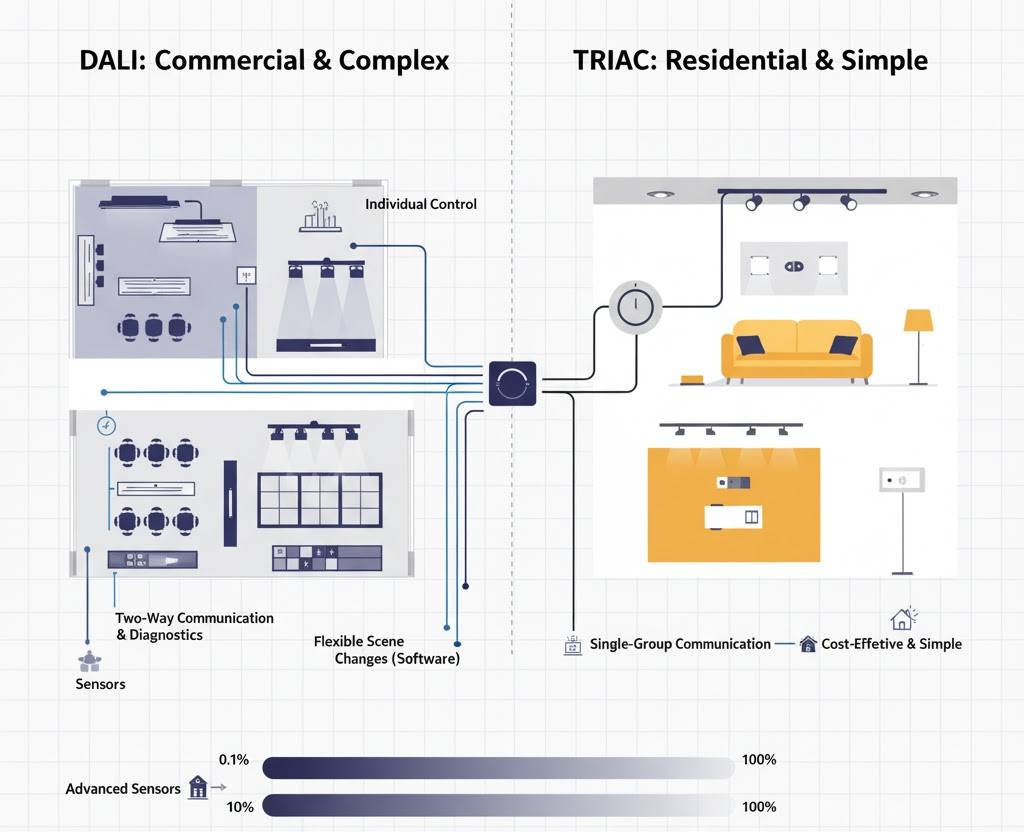

DALI vs TRIAC: Head-to-Head Comparison

Let’s compare these two systems across the most important factors:

Installation and Setup

TRIAC Winner for Simplicity TRIAC is the clear winner for easy installation. It’s plug-and-play technology that works with existing wiring. Any electrician can install a TRIAC dimmer in minutes.

DALI requires additional control wiring, programming, and commissioning. Installation takes longer and requires more expertise.

Cost

TRIAC Winner for Budget Projects For small projects and simple applications, TRIAC is more affordable. The components cost less, and installation is quicker.

DALI has higher upfront costs but can save money in the long run through energy monitoring and longer equipment life. For large commercial projects, the extra features often justify the cost.

Control Precision and Quality

DALI Winner for Performance DALI provides superior dimming quality. The dimming is smooth from 100% to near 0%, with no flickering or compatibility issues.

TRIAC dimming can be inconsistent, especially with LED lights. Dimming range is limited, and you may experience flickering at low levels.

Flexibility and Scalability

DALI Winner for Complex Systems DALI is much more flexible. You can control individual lights, create unlimited scenes, and easily add or remove devices. It’s perfect for buildings that need to adapt over time.

TRIAC is limited to simple on/off and dimming functions. Once installed, it’s difficult to change the configuration without rewiring.

Smart Building Integration

DALI Winner for Modern Buildings DALI integrates seamlessly with building management systems, sensors, and automation. It’s designed for the smart buildings of today and tomorrow.

TRIAC is a standalone system with no communication capabilities. It can’t integrate with other building systems without additional equipment.

Maintenance and Monitoring

DALI Winner for Facility Management DALI systems can report lamp failures, track energy usage, and provide system diagnostics. This makes maintenance proactive rather than reactive.

TRIAC systems offer no feedback. You won’t know a bulb is out until someone sees it and reports it.

Energy Efficiency

DALI Winner for Optimization While both systems can dim lights to save energy, DALI takes it further. It can integrate with occupancy sensors and daylight harvesting systems to automatically optimize lighting based on real-time conditions.

TRIAC requires manual adjustment to save energy, limiting its efficiency benefits.

When Should You Choose TRIAC?

TRIAC dimming is the best choice when:

You Have a Small Project For residential homes, small offices, or single rooms, TRIAC offers everything you need without unnecessary complexity.

Budget Is Your Top Priority If you need to keep costs low and don’t need advanced features, TRIAC is the economical choice.

You Want Simple, Manual Control When you just need basic dimming with a wall switch, TRIAC is perfect. No programming, no learning curve.

You’re Retrofitting Existing Buildings TRIAC works with existing wiring, making it ideal for renovation projects where running new cables is difficult or expensive.

You Don’t Need Integration If your lighting doesn’t need to connect with other systems, TRIAC’s standalone operation is sufficient.

Best TRIAC Applications

• Single-family homes
• Apartments
• Small retail stores
• Restaurants and cafes
• Boutique hotels
• Gallery lighting
• Residential renovations

When Should You Choose DALI?

DALI lighting control is the best choice when:

You Have a Commercial Building Office buildings, schools, hospitals, and hotels benefit greatly from DALI’s advanced features and control capabilities.

You Need Individual Light Control When you want to control each light fixture independently, DALI is the only practical option.

You Want Energy Monitoring For buildings focused on energy efficiency and sustainability, DALI’s monitoring and reporting features are invaluable.

You’re Building a Smart Building If you’re integrating lighting with HVAC, security, and other systems, DALI is essential.

Flexibility Is Important When you know lighting needs will change over time, DALI’s reprogrammable system adapts without rewiring.

You Have Multiple Lighting Scenes For spaces that serve different purposes throughout the day, DALI makes it easy to create and recall lighting scenes.

Best DALI Applications

• Office buildings
• Schools and universities
• Hospitals and healthcare facilities
• Hotels and conference centers
• Museums and galleries
• Retail chains
• Industrial facilities
• Sports facilities
• Airport terminals
• Smart city installations

Can You Use Both DALI and TRIAC Together?

Yes, you can! Many buildings use a hybrid approach:

• DALI for common areas and main spaces where advanced control is needed
• TRIAC for simple areas like storage rooms, stairwells, or back offices where basic dimming is sufficient

This hybrid approach balances cost and functionality. You get advanced control where it matters most while keeping costs down in less critical areas.

There are also gateway devices that allow DALI and TRIAC systems to work together in the same building management system.

Emerging Alternatives: What About Bluetooth and Zigbee?

While DALI and TRIAC are the most common wired solutions, wireless technologies are emerging:

Bluetooth Mesh Allows smartphone control of lights without running control cables. Good for retrofit projects but has limited range and may face interference.

Zigbee A wireless protocol used in smart home systems. Works well for residential but may not be reliable enough for commercial applications.

0-10V Dimming An analog dimming protocol that’s simpler than DALI but more controllable than TRIAC. Common in commercial applications but being replaced by DALI in new installations.

These technologies have their place, but DALI remains the gold standard for commercial lighting control, while TRIAC continues to dominate residential and simple applications.

Making Your Decision: DALI or TRIAC?

Here’s a simple decision framework:

Choose TRIAC if:

• Your project is residential or small-scale
• You have a tight budget
• You need simple dimming only
• You’re working with existing wiring
• You don’t need integration with other systems

Choose DALI if:

• Your project is commercial or institutional
• You need individual fixture control
• You want energy monitoring and reporting
• You’re building a smart building
• Flexibility and future-proofing are important
• You need multiple lighting scenes

Consider a hybrid approach if:

• You have a medium to large building with varying needs
• You want advanced control in main areas but basic control elsewhere
• You need to balance performance and budget

The Future of Lighting Control

The lighting industry is moving toward digital control systems like DALI. Here’s why:

DALI-2 Standard The newer DALI-2 protocol ensures even better interoperability between devices from different manufacturers. This makes DALI systems more reliable and easier to expand.

Internet of Things (IoT) Buildings are becoming smarter, with everything connected. DALI’s digital nature makes it perfect for IoT integration.

Energy Regulations Stricter energy codes are requiring better monitoring and control. DALI’s reporting capabilities help buildings meet these requirements.

LED Technology As LED lights continue to improve, they’re designed with digital control in mind. DALI and LED technology are perfect partners.

That said, TRIAC isn’t going anywhere. For simple applications and residential use, it remains the practical, affordable choice.

Conclusion: Which Is Best for You?

There’s no single “best” lighting control system – it depends on your specific needs:

TRIAC dimming is excellent for simple, cost-effective lighting control. It’s the right choice for homes and small spaces where you just need basic dimming functionality.

DALI lighting control is the superior system for commercial buildings and complex applications. It offers precision, flexibility, monitoring, and integration that TRIAC simply can’t match.

Think about your project requirements:

• What’s your budget?
• How complex are your lighting needs?
• Do you need integration with other systems?
• How important is energy monitoring?
• Will your lighting needs change over time?

Answer these questions honestly, and the right choice will become clear.

For most homeowners and small businesses, TRIAC dimming provides everything needed at an affordable price. For commercial buildings and anyone serious about smart building technology, DALI is worth the investment.

Both technologies have their place in modern lighting design. Understanding the differences helps you make the smart choice for your specific situation.

Frequently Asked Questions

Can I replace a TRIAC system with DALI later? Yes, but it requires new control wiring and DALI-compatible drivers. It’s essentially a complete lighting control upgrade.

Do DALI lights use more electricity? No. DALI is a control protocol, not a power system. When properly controlled, DALI systems often save more energy through better optimization.

Will TRIAC dimmers work with any LED bulb? No. You need LEDs specifically labeled as “dimmable” or “TRIAC compatible.” Not all LEDs dim well with TRIAC.

How many lights can one DALI controller handle? A single DALI line can control up to 64 individual devices. With DALI gateways, you can control thousands of lights.

Is DALI difficult to program? It requires technical knowledge, but modern DALI systems have user-friendly software. Many installers offer commissioning services.

Can I control DALI lights with my smartphone? Yes, with a DALI gateway that connects to your network. Many DALI systems now offer app control.

By understanding the strengths and limitations of both DALI and TRIAC lighting control, you’re now equipped to make the best decision for your lighting project. Whether you choose the simplicity of TRIAC or the sophistication of DALI, proper lighting control will enhance your space while saving energy.
