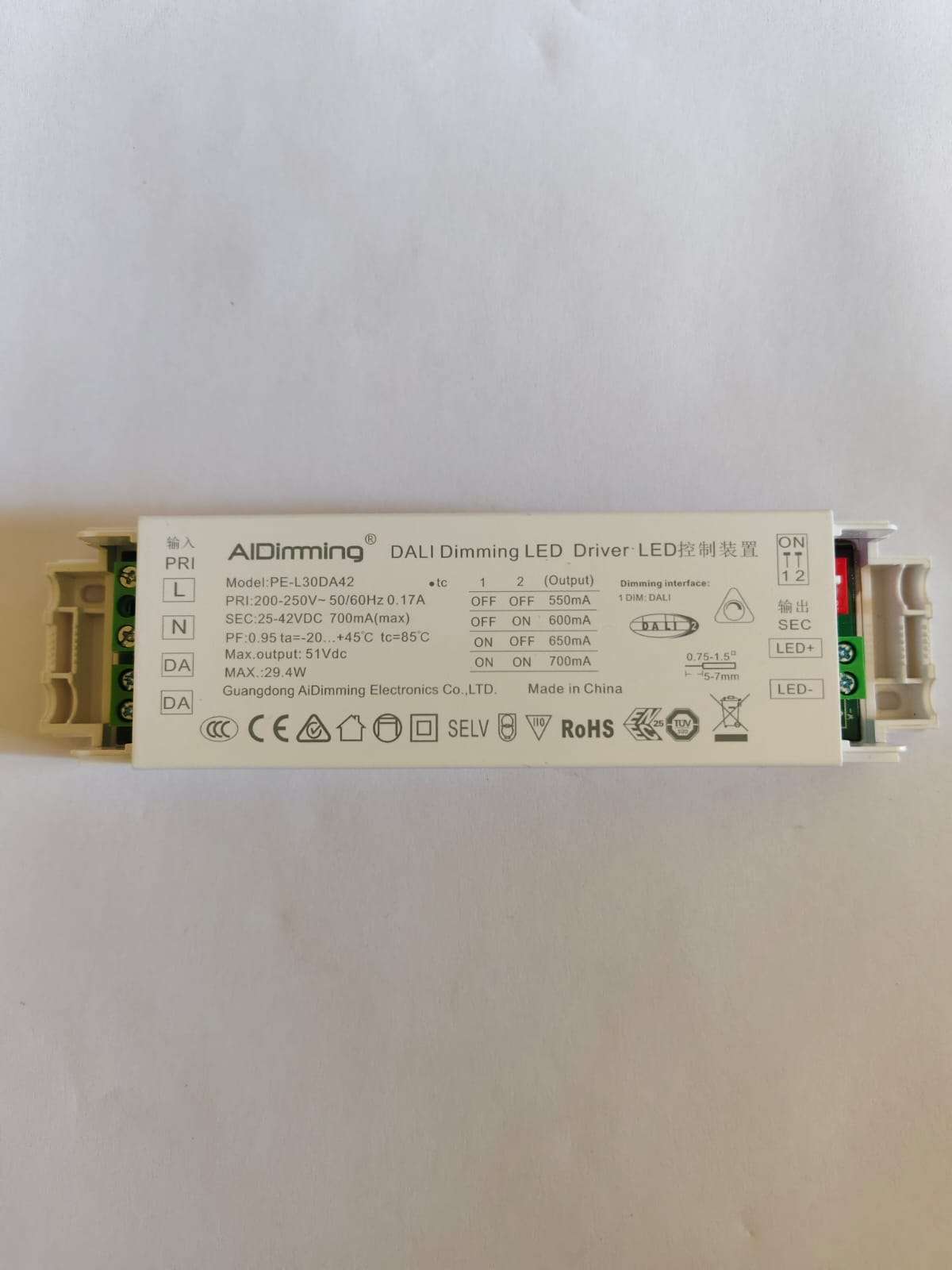

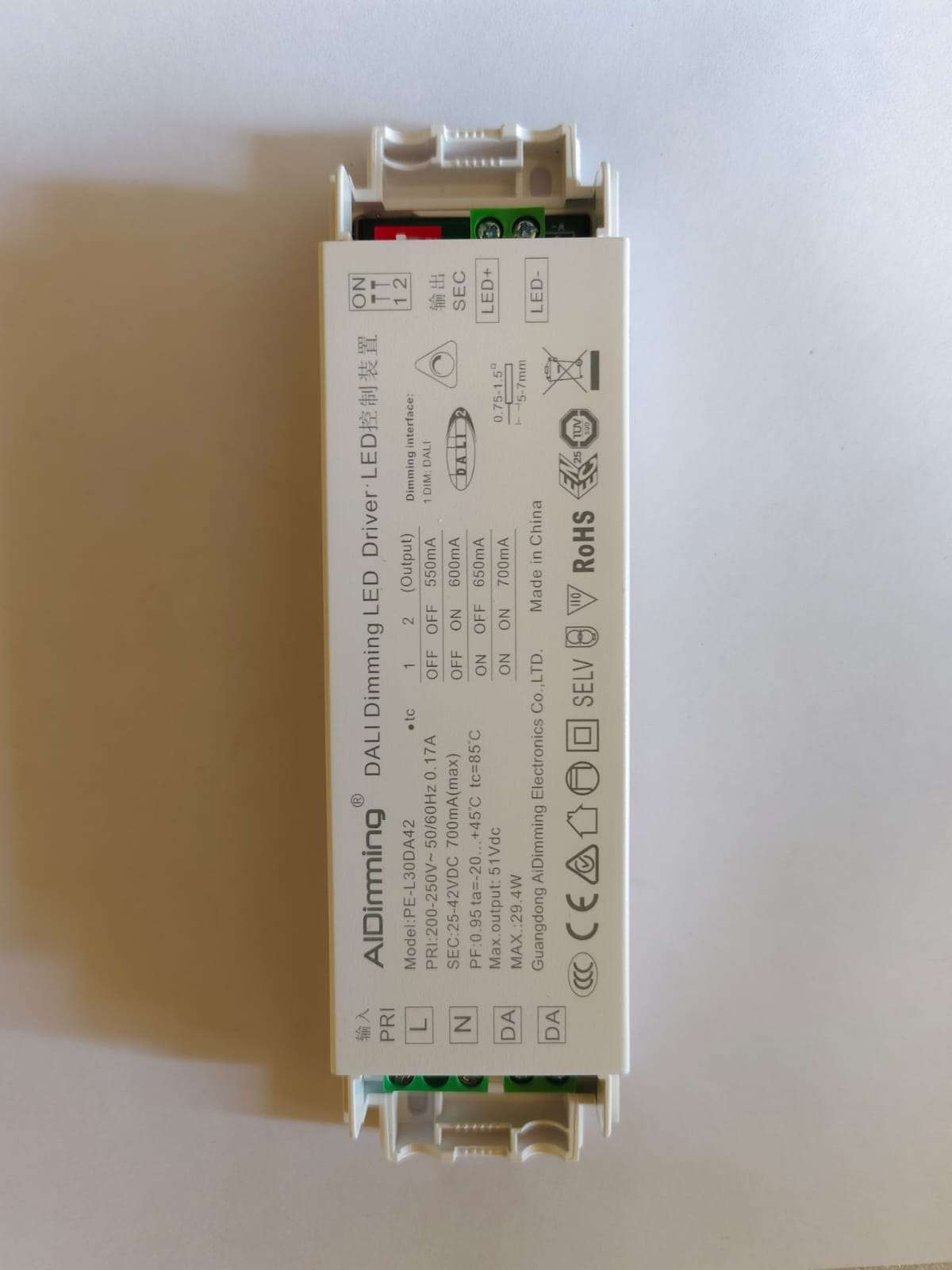

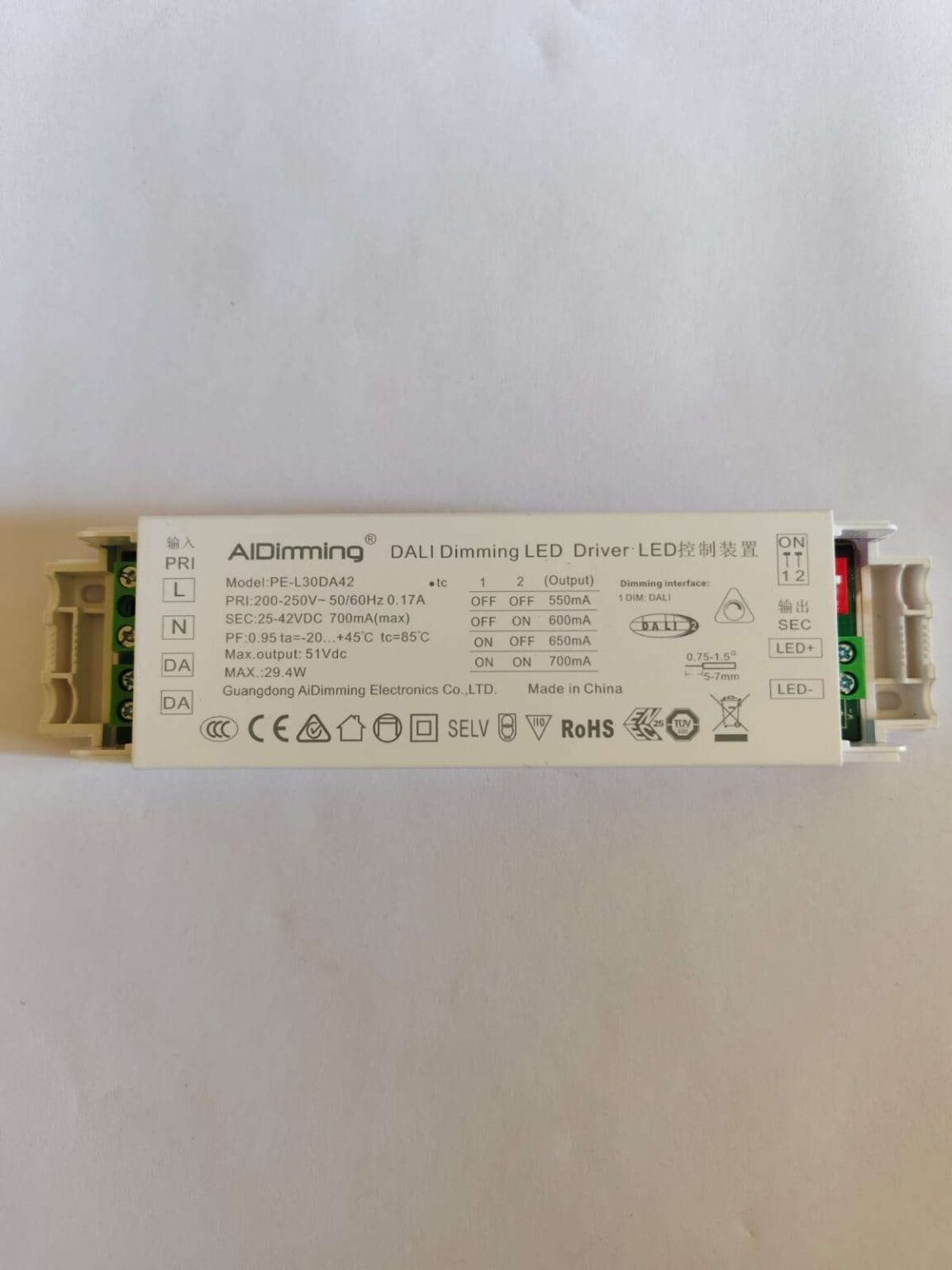

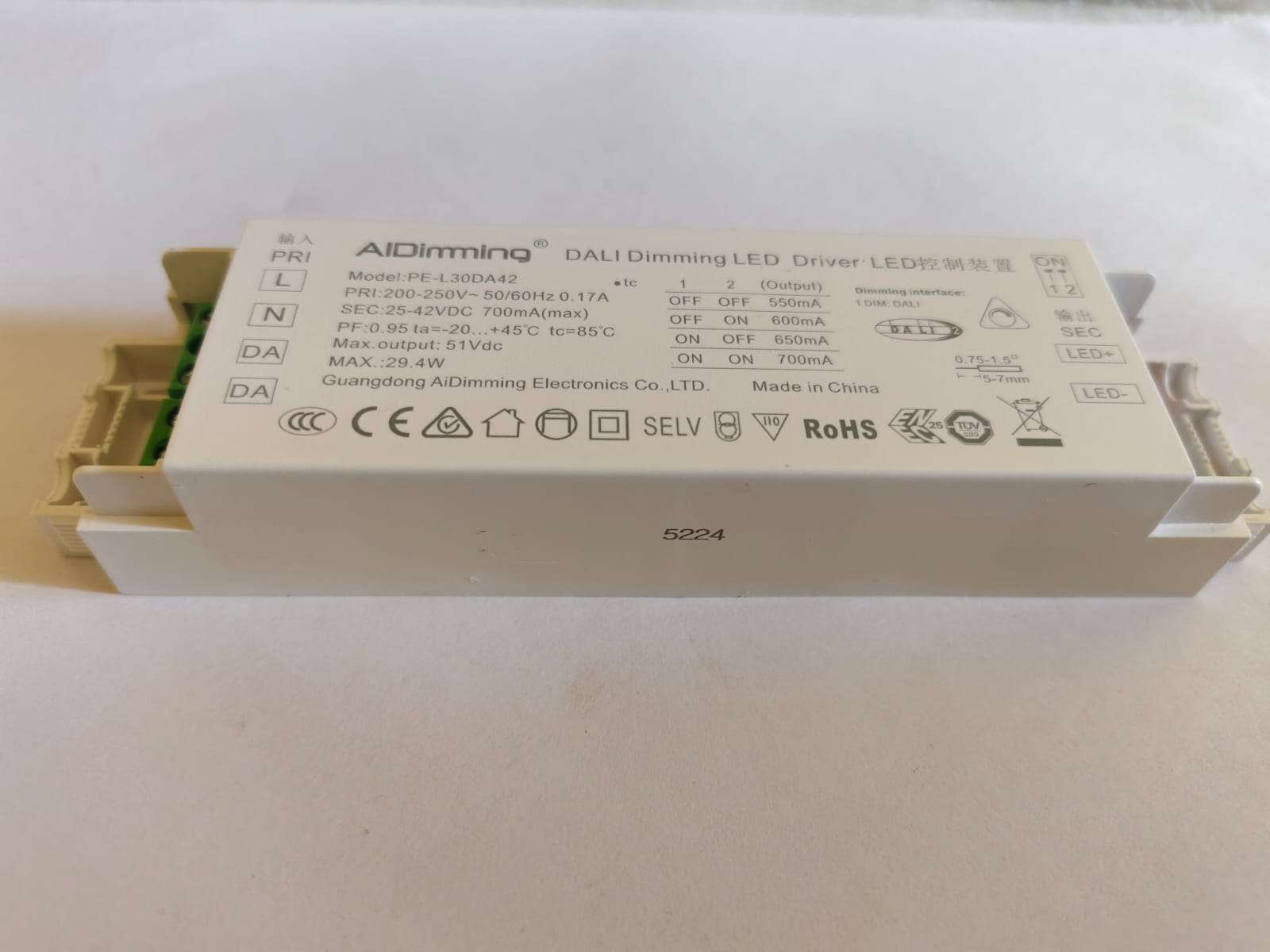

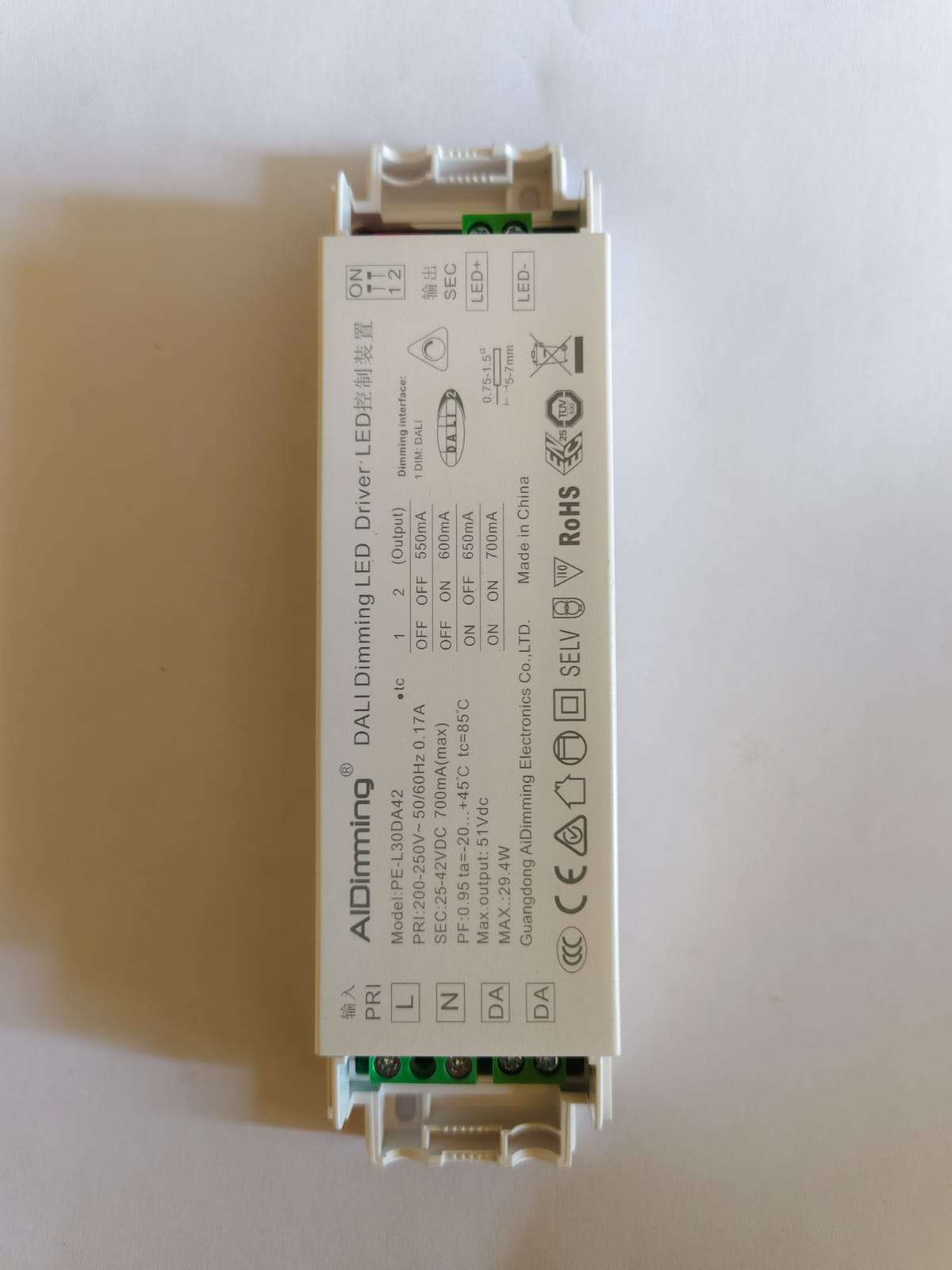

AIDimming 30W 42VDC DALI Dimming led driver
₹1,950.00
AIDimming 30W 42VDC DALI Dimming led driver
| Category | Parameter | PE-L20DA40 | PE-L20DA4040 |
|---|---|---|---|
| OUTPUT | Output Voltage | 25~40Vdc | 25~40Vdc |
| Max Output Voltage | 40Vdc | 40Vdc | |
| Non-load Output Voltage | 51Vdc | 51Vdc | |
| Output Current | 350/400/450/500mA | 250/300/350/400mA | |
| Output Power | 8.75W~20W | 6.5W~16W | |
| Strobe Level | No Flicker | No Flicker | |
| Dimming Range | 0~100%, LED start at 0.1% possible | 0~100%, LED start at 0.1% possible | |
| PWM Dimming Frequency | >3600Hz | >3600Hz | |
| Current Accuracy | ±5% | ±5% | |
| Power Down Mode | Memory function when power down | Memory function when power down | |
| INPUT | Dimming Interface | DALI (IEC62386), Signal control < 2mA | Same |
| Input Voltage Range | 200~250Vac | Same | |
| Frequency | 50/60Hz | Same | |
| Input Current | <0.1A ac230V | Same | |
| Power Factor | PF>0.96/230V ac (at full load) | Same | |
| THD | <6% @ 230Vac (full load) | Same | |
| Efficiency (typ.) | 86% | Same | |
| Inrush Current (typ.) | Cold start 25A @ 230Vac | Same | |
| Anti-Surge | L-N: 1.8kV | Same | |
| Leakage Current | <0.25mA @ 230Vac | Same | |
| ENVIRONMENT | Working Temperature | ta: 45°C, tc: 80°C | Same |
| Working Humidity | 20%~95%RH, non-condensing | Same | |
| Storage Temp, Humidity | -40 |
Same | |
| Temp. Coefficient | ±0.03%/°C (0~50°C) | Same | |
| Vibration | 10~500Hz, 2G 12min/1cycle, 72min each XYZ | Same | |
| PROTECTION | Overheat Protection | Intelligent adjustment or shutdown >110°C | Auto recovers |
| Over Load Protection | Shutdown >102% rated power, auto recovers | Same | |
| Short Circuit Protection | Auto shutdown if short circuit, auto recovers | Same | |
| Non-load Protection | Output constant voltage | Same | |
| SAFETY & EMC | Withstand Voltage | I/P-O/P: 3750Vac | Same |
| Isolation Resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | Same | |
| Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13 | Same | |
| EMC Emission | EN55015, EN61000-3-2 Class C, IEC61000-3-3 | Same | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 | Same | |
| Strobe Test Standard | IEEE 1789 | Same | |
| OTHERS | Dimension | 130×37×22.6mm (L×W×H) | Same |
| Packing | PE bag | Same | |
| Weight (G.W.) | 110g ±10g | Same |
Description
AIDimming 30W 42VDC DALI Dimming led driver
AIDimming 30W 42VDC DALI Dimming LED Driver – Precision Control for Seamless Lighting
Elevate your lighting experience with the AIDimming 30W 42VDC DALI Dimming LED Driver, designed for those who demand precision and versatility in their LED setups. This advanced LED driver provides a stable 42V DC output with a 30W power rating, making it ideal for powering a wide range of low-power LED lights with DALI dimming compatibility. Whether you’re designing commercial lighting, architectural projects, or smart home systems, this LED driver ensures optimal performance with seamless dimming control and energy efficiency.
| Category | Parameter | PE-L30DA42 | PE-L45DA42 |
|---|---|---|---|
| OUTPUT | Output Voltage | 25–42Vdc | 25–42Vdc |
| Max Output Voltage | 42Vdc | 42Vdc | |
| No-load Output Voltage | 48.2Vdc | 48.2Vdc | |
| Output Current | 550/600/650/700mA | 850/900/950/1000mA | |
| Output Power | 13.75W–29.4W | 21.25W–42W | |
| Strobe Level | No flicker percent (IEEE 1789 = 0–0.379), Flicker index < 0.005 | Same | |
| Dimming Range | 0–100%, LEDstart at 0.12% possible | Same | |
| PWM Dimming Frequency | >3600Hz | Same | |
| Current Accuracy | ±5% | Same | |
| Power Down Mode | Memory function when power down | Same | |
| INPUT | Dimming Interface | DALI (IEC62386), Signal control current < 2mA | Same |
| Input Voltage Range | 200–250Vac | Same | |
| Frequency | 50/60Hz | Same | |
| Input Current | <0.17A @230V | <0.24A @230V | |
| Power Factor | PF >0.95/230V (at full load) | Same | |
| THD | 230Vac @ THD <8% (at full load) | Same | |
| Efficiency (typ.) | 88.7% | 89% | |
| Inrush Current (typ.) | Cold start 53A @230Vac | Same | |
| Anti Surge | L–N: 2kV | Same | |
| Leakage Current | <0.25mA @230Vac | Same | |
| ENVIRONMENT | Working Temperature | ta: 45°C, tc: 80°C | Same |
| Working Humidity | 20–95% RH, non-condensing | Same | |
| Storage Temp., Humidity | -40 to 80°C, 10–95% RH | Same | |
| Temp. Coefficient | ±0.03%/°C (0–50°C) | Same | |
| Vibration | 10–500Hz, 2G, 12min./1cycle, total 72min. on X, Y, Z axes | Same | |
| PROTECTION | Over-heat Protection | Auto shutdown or regulation if PCB temp >110°C, auto recovers | Same |
| Overload Protection | Output shuts down if power >102%, auto recovers | Same | |
| Short Circuit Protection | Auto shutdown and recovery | Same | |
| No-load Protection | Output constant voltage | Same | |
| SAFETY & EMC | Withstand Voltage | I/P–O/P: 3750Vac | Same |
| Isolation Resistance | I/P–O/P: 100MΩ / 500VDC @25°C / 70% RH | Same | |
| Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13 | Same | |
| EMC Emission | EN55015, EN61000-3-2 Class C, IEC61000-3-3 | Same | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 | Same | |
| Strobe Test Standard | IEEE 1789 | Same | |
| OTHERS | Dimension (L×W×H) | 154.5×41×25mm | Same |
| Packing | Box | Same | |
| Weight (G.W.) | 153g ±10g | Same |
